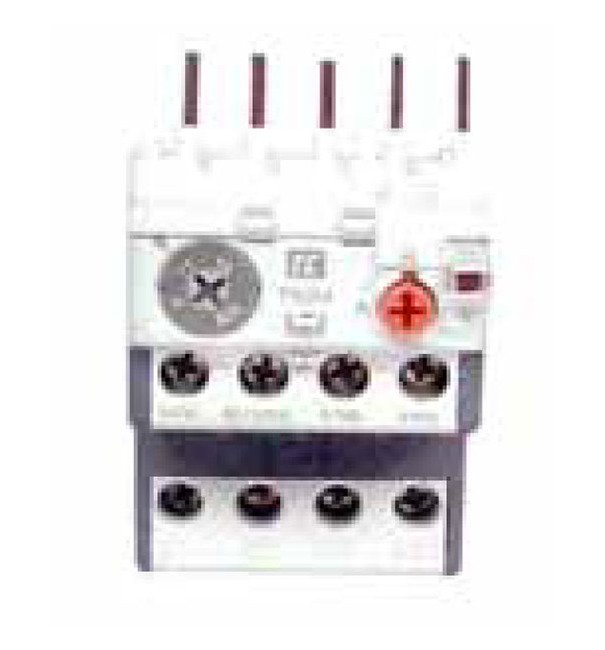

Mini Overload Relay 9-13A Setting Current Range
Mini Overload Relay 9-13A Setting Current Range
SKU:REL-d313fd
Reliable Mini Overload Relay with 9-13A Setting Current Range, 45mm width, and trip-free design for secure installations.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Mini Overload Relay 9-13A Setting Current Range
$59.99
Quantity: 1
Claim Your Seller Account
Mini Overload Relay 9-13A Setting Current Range
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

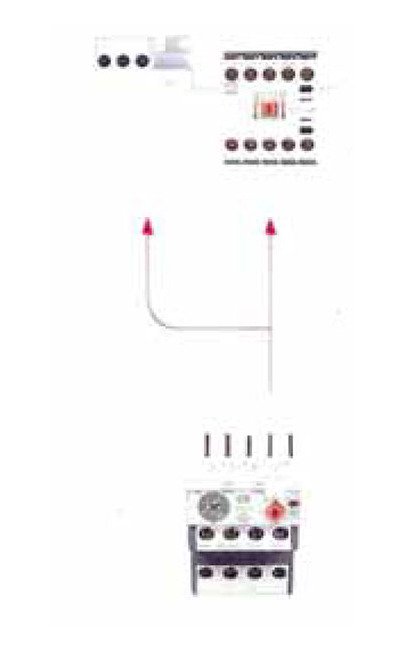

The Mini Overload Relay 9-13A Setting Current Range is a reliable solution suitable for direct mounting on TC1-M6, TC1-M9, TC1-M12 mini contactors with screw clamp connection. This Shamrock Controls product features a small width of 45mm and a setting current range from 9 to 13A, making it ideal for various applications. With a trip class of 10A according to IEC60947-4-1/1S-13947-4-1 and DIN rail or screw mountable options, this overload relay offers flexibility and ease of installation. Additionally, the device is designed with trip-free functionality and NO + 1 NC potential-free contacts, meeting the stringent standards required by institutional buyers.
Product Specifications
Additional Information Additional Information
DIN rail or screw mountable with the optional base TA1-M09641 NO + 1 NC Potential free contactsTrip class 10A according to IEC60947-4-1/1S-13947-4-1Ambient/Manual reset site selectableTrip Free design
Alternating Current Ac15 11 Duty Alternating Current Ac15 11 Dut
0.3 A
Direct Current Dc13 11 Duty Direct Current Dc13 11 Duty Auxiliar
0.14 A
Note Note
Values are the ratings of NO contact under auto reset mode
Specifications Setting Current Range
9 to 13 A
Specifications Small Width
45 mm
