Mini Overload Relay with 0.25-0.4A Current Range
Mini Overload Relay with 0.25-0.4A Current Range
SKU:REL-7405ae
Precision and reliability in a compact design for contactors TC1-M6, TC1-M9, TC1-M12.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Mini Overload Relay with 0.25-0.4A Current Range
$34.99
Quantity: 1
Claim Your Seller Account
Mini Overload Relay with 0.25-0.4A Current Range
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

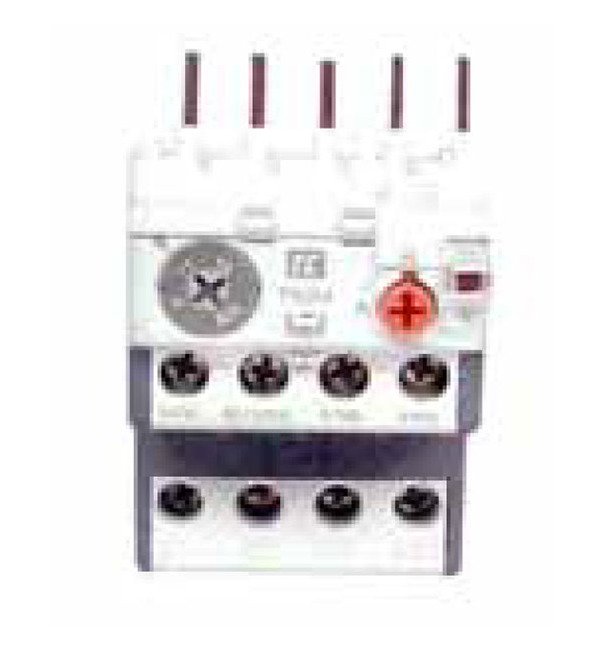

The Shamrock Controls Mini Overload Relay offers a precise current range of 0.25 to 0.4 A, designed for seamless integration with TC1-M6, TC1-M9, and TC1-M12 contactor types. With a small width of 45mm, this relay features trip class 10A according to IEC60947-4-1 standards, DIN rail or screw mountable options, and NO+NC potential free contacts. Suitable for alternating current (AC15) and direct current (DC13) duties, it ensures reliable performance with a trip-free design.
Product Specifications
Additional Information Additional Information
DIN rail or screw mountable with the optional base TA1-M09641 NO + 1 NC Potential free contactsTrip class 10A according to IEC60947-4-1/1S-13947-4-1Ambient/Manual reset site selectableTrip Free design
Alternating Current Ac15 11 Duty Alternating Current Ac15 11 Dut
0.3 A
Direct Current Dc13 11 Duty Direct Current Dc13 11 Duty Auxiliar
0.14 A
Note Note
Values are the ratings of NO contact under auto reset mode
Specifications Setting Current Range
0.25 to 0.4 A
Specifications Small Width
45 mm
