Mini Support Post - Dual Locking, Nylon 66 UL94V-0, Pack of 1000
Mini Support Post - Dual Locking, Nylon 66 UL94V-0, Pack of 1000
SKU:01C-63cdf0
Mini Support Post for secure circuit board installations - Nylon 66 UL94V-0, ASTM & RoHS compliant.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Mini Support Post - Dual Locking, Nylon 66 UL94V-0, Pack of 1000
$59.99
Quantity: 1
Claim Your Seller Account
Mini Support Post - Dual Locking, Nylon 66 UL94V-0, Pack of 1000
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 30 Series: .152 Board Hole x .152 Chassis Side Mini Support Post is a must-have for secure circuit board installations. Designed with dual locking functionality, this post ensures precise positioning and stability. Made from Nylon 66 UL94V-0 material, it guarantees exceptional fire resistance and superior performance. With ASTM and RoHS compliance, a temperature range of -40 to 185F (-40 to 85C), this support post is ideal for demanding environments requiring reliability and durability.

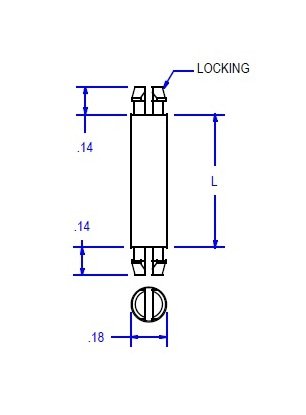

Product Specifications
Specifications Board Hole Diameter
.152 ± .005 (3.9) inches (mm)
Specifications Dim L
1.25 ± .010 (31.7) inches (mm)
Specifications Material Code
UL94V-0
Specifications Panel Thickness
.063 ± .005 (1.6) inches (mm)
Specifications Remarks Board Hole Diameter
Board Hole Diameter is for both ends.
Specifications Remarks Panel Thickness
Panel thickness is for both ends.
