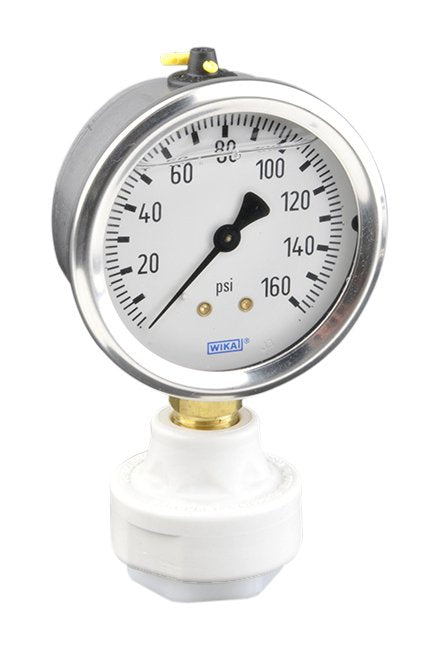

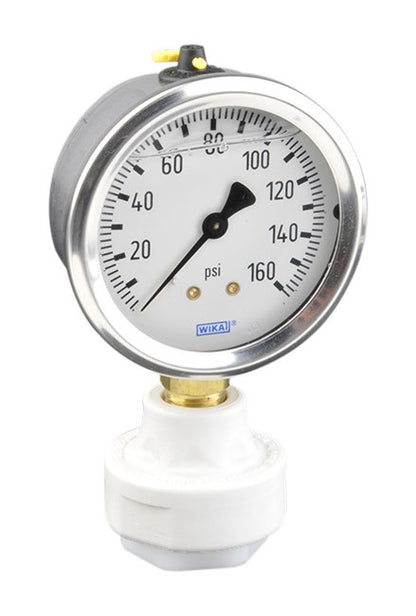

Mini Tuff Gauge Isolator with Wika 212.53 Stainless Gauge, Polypro Diaphragm
Mini Tuff Gauge Isolator with Wika 212.53 Stainless Gauge, Polypro Diaphragm
SKU:GAU-269f97
Rugged Mini Tuff Gauge Isolator with Composite Diaphragm, Wika 212.53 Stainless Gauge, and FDA, USDA, USP Compliance.
Regular price
$109.95
Regular price
Sale price
$109.95
Unit price
per
Initiate Order
Mini Tuff Gauge Isolator with Wika 212.53 Stainless Gauge, Polypro Diaphragm
$109.95
Quantity: 1
Claim Your Seller Account
Mini Tuff Gauge Isolator with Wika 212.53 Stainless Gauge, Polypro Diaphragm
$109.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Mini Tuff Gauge Isolator features a rugged design with a composite PTFE/FKM diaphragm, ensuring a protective barrier between process fluids and instruments for enhanced system reliability. Its compact size is ideal for limited space applications, offering cost-effective OEM integration. With a 2.5% accuracy full span Wika 212.53 stainless gauge, glycerin-filled case, and 1/4" female NPT connection, this isolator guarantees zero pressure build during installation. Meeting FDA, USDA, and USP standards, this isolator is crafted from high-quality materials like natural polypropylene and can withstand max pressure ratings of up to 240 PSI. For further compliance validation, please contact us.
Product Specifications
Specifications Inlet Connection
1/4" Fem NPT
Specifications Installed Gauge
0-30" in-Hg, Brass, Blk Pntd Steel
Specifications List Price
109.95 USD
Specifications Materials
Nat PP, PTFE/FKM Diaph
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
