Mini Tuff Guard Isolator with 2" Economy Gauge
Mini Tuff Guard Isolator with 2" Economy Gauge
SKU:GAU-6fe91b
Protective Mini Tuff Guard Isolator with 2" Economy Gauge for reliable instrument protection and enhanced system performance.
Regular price
$85.95
Regular price
Sale price
$85.95
Unit price
per
Initiate Order
Mini Tuff Guard Isolator with 2" Economy Gauge
$85.95
Quantity: 1
Claim Your Seller Account
Mini Tuff Guard Isolator with 2" Economy Gauge
$85.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

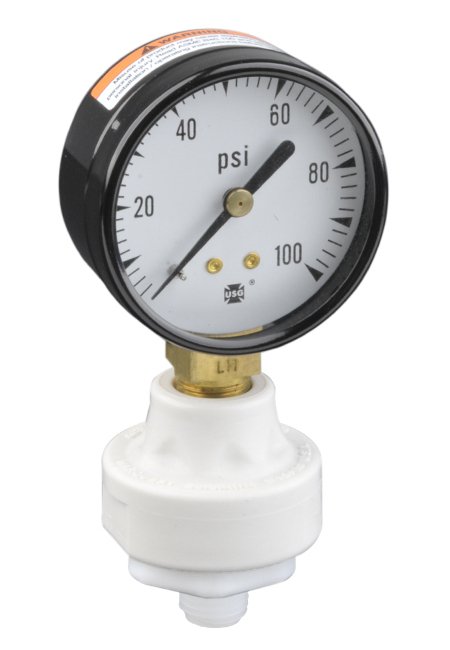

The Mini Tuff Guard Isolator is a vital component that offers a protective buffer between process fluids and instruments, ensuring system reliability by averting instrument failures. Crafted with robust injection-molded construction, it boasts a replaceable diaphragm and an ultra-compact design suitable for confined spaces. This isolator features a 1/4" female NPT instrument connection, a US Ametek 2" Dia. Black Painted Steel Case with Brass Internals, and a dry case with 2-3-2% Accuracy Full Span, measuring 0-30" in-Hg vacuum. Compliant with FDA, USDA, and USP standards, the diaphragm is engineered from composite PTFE/FKM materials for exceptional performance.
Product Specifications
Specifications Inlet Connection
1/4" MNPT
Specifications Installed Gauge
0-30" in-Hg, Brass, Blk Pntd Steel
Specifications List Price
85.95 USD
Specifications Materials
Nat PP, PTFE/FKM Diaph
Specifications Shipping Note
We will let you know the shipping charges once we receive the order.
