Miniature 10-Conductor Waterproof Plug
Miniature 10-Conductor Waterproof Plug
SKU:7AN-2da064
Durable Miniature Waterproof Plug with Gold-Plated Contacts for Rugged Applications
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Miniature 10-Conductor Waterproof Plug
$24.99
Quantity: 1
Claim Your Seller Account
Miniature 10-Conductor Waterproof Plug
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

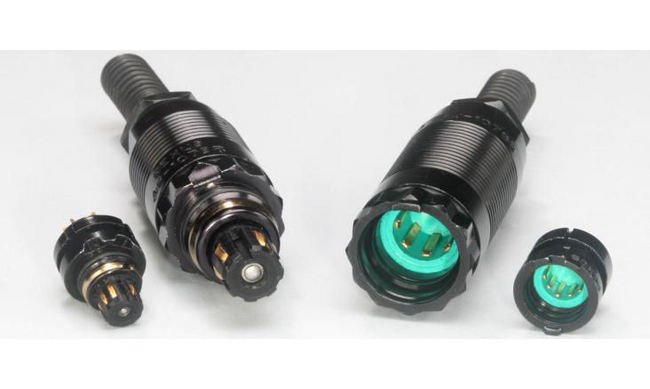

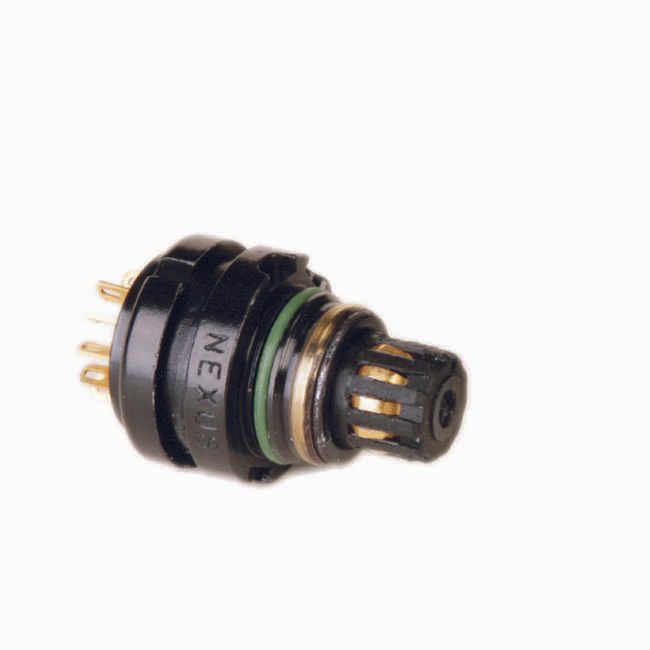

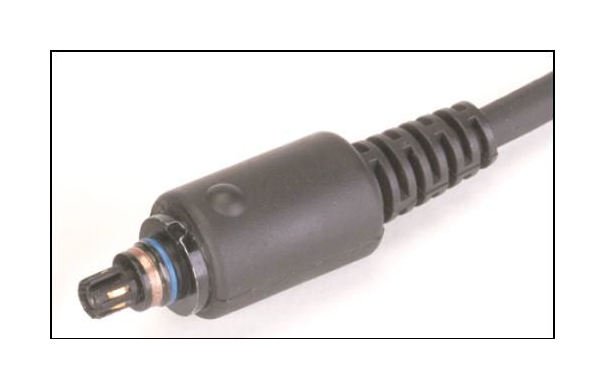

The Miniature 10-Conductor Waterproof Plug is designed for ruggedized commercial and military applications, featuring solder terminals, an overmold rear accessory, and a sturdy aluminum shell. With gold-plated BeCu contacts and black anodized or black chrome plating, this plug ensures reliable connectivity in harsh environments. It offers axial push-pull mating with engagement and disengagement forces of ≤ 14 lb and 8 to 12 lb, respectively. With a temperature range of -55 to 85 °C, 5000 mating cycles, and a contact current capacity of 3 A, this plug guarantees durable performance and low contact resistance.
Product Specifications
Specifications Application
Ruggedized Commercial / Military
Specifications Conductors
10
Specifications Contact Current Capacity
3 A
Specifications Contact Material
Gold-plated BeCu
Specifications Contact Resistance
⤠150 mV
Specifications Contact Types
Solder
Specifications Disengagement Force
8 to 12 lb
Specifications Engagement Force
⤠14 lb
Specifications Insert Material
Thermoset Plastic
Specifications Mating
Axial Push-Pull Motion
Specifications Mating Cycles
5000
Specifications Plating Material
Black Anodize (standard) | Black Chrome (shielded)
Specifications Rear Accessory
Overmold
Specifications Shell Material
Aluminum
Specifications Temperature
-55 to 85 ºC
