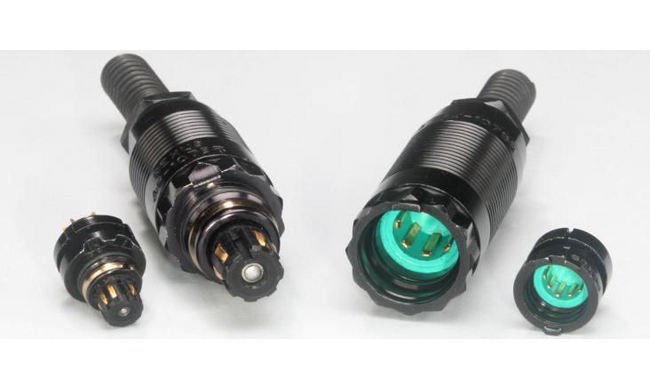

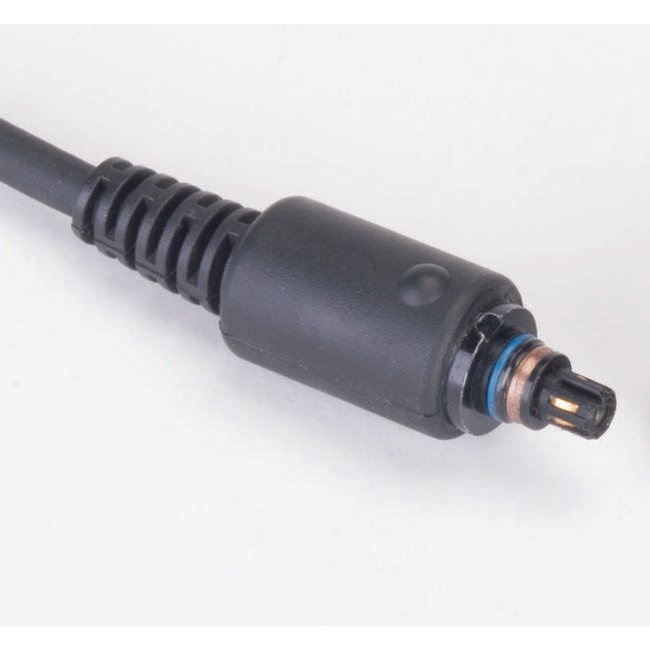

The Miniature 7-Pin Waterproof Plug Over Mold Connector is designed for ruggedized commercial and military applications, featuring gold-plated BeCu contacts for reliable conductivity. With an aluminum shell, this connector offers black anodize or black chrome plating options, ensuring durability in harsh environments. Its axial push-pull mating mechanism allows easy, secure connections, while meeting stringent standards for temperature range, contact current capacity, and contact resistance. With 5000 mating cycles and an engagement force of ≤ 14 lb, this connector ensures long-term performance under demanding conditions.
Product Specifications
Specifications Application
Ruggedized Commercial / Military
Specifications Conductors
7
Specifications Contact Current Capacity
3 A
Specifications Contact Material
Gold-plated BeCu
Specifications Contact Resistance
⤠150 mV
Specifications Contact Types
Solder
Specifications Disengagement Force
8 to 12 lb
Specifications Engagement Force
⤠14 lb
Specifications Insert Material
Thermoset Plastic
Specifications Mating
Axial Push-Pull Motion
Specifications Mating Cycles
5000
Specifications Plating Material
Black Anodize (standard) | Black Chrome (shielded)
Specifications Rear Accessory
Overmold
Specifications Shell Material
Aluminum
Specifications Temperature
-55 to 85 ºC
