Miniature 7-Pin Waterproof Plug with Wire Strain Relief
Miniature 7-Pin Waterproof Plug with Wire Strain Relief
SKU:7AN-6e2a4d
Premium 7-Pin Miniature Waterproof Plug for Reliable Connections
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Miniature 7-Pin Waterproof Plug with Wire Strain Relief
$29.99
Quantity: 1
Claim Your Seller Account
Miniature 7-Pin Waterproof Plug with Wire Strain Relief
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

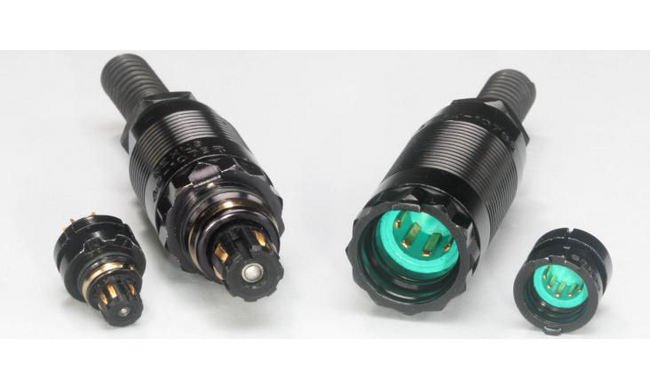

The Miniature 7-Pin Waterproof Plug with Wire Strain Relief is designed for ruggedized commercial and military applications, featuring solder terminals, gold-plated BeCu contacts, and a wire strain relief suitable for cables up to .148" in diameter. With a durable aluminum shell, black anodized plating, and a thermoset plastic insert, this plug ensures reliable performance in harsh environments. Its axial push-pull mating mechanism, 5000 mating cycles, and temperature range of -55 to 85°C make it ideal for demanding conditions. Meeting FAR compliance factors, this plug guarantees secure connections with an engagement force of ≤ 14 lb and disengagement force of 8 to 12 lb.
Product Specifications
Specifications Application
Ruggedized Commercial / Military
Specifications Conductors
7
Specifications Contact Current Capacity
3 A
Specifications Contact Material
Gold-plated BeCu
Specifications Contact Resistance
⤠150 mV
Specifications Contact Types
Solder
Specifications Disengagement Force
8 to 12 lb
Specifications Engagement Force
⤠14 lb
Specifications Insert Material
Thermoset Plastic
Specifications Mating
Axial Push-Pull Motion
Specifications Mating Cycles
5000
Specifications Plating Material
Black Anodize (standard) | Black Chrome (shielded)
Specifications Rear Accessory
Wire Strain Relief (.148 max)
Specifications Shell Material
Aluminum
Specifications Temperature
-55 to 85 ºC
