Enhance audio performance with Triad's Miniature Impedance Matching Transformers - Red Spec. Built to Mil-T-27E standards, these transformers deliver precision and durability for demanding applications in Mil-Aero, Medical, and Pro Audio fields. Featuring a frequency response range of ±2.0 DB, matching impedances, and high reliability construction, these transformers provide unmatched quality for critical audio needs.
Product Specifications
Construction Construction
Plug-in terminals are precision spaced to provide fixed mounting centers. UL94 V-0 rated molded case includes a 0.020â recess for ease of solder inspection. Leads are made of high strength Nickel alloy, gold plated and are 0.020â in diameter.
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Dc Resistance Primary
1160 Ohm
Specifications Dc Resistance Secondary
0.81 Ohm
Specifications Frequency Response Range
±2.0 DB, at 300 Hz to 100K Hz

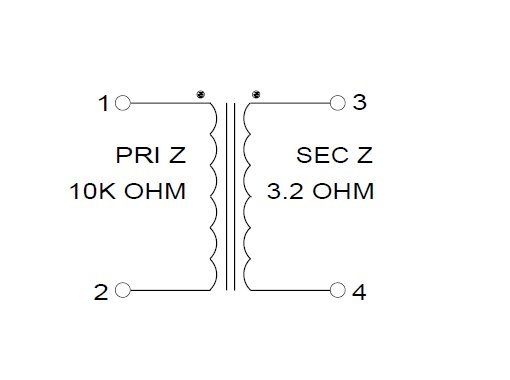

Specifications Matching Impedance Primary
10000 Ohm
Specifications Matching Impedance Secondary
3.2 Ohm
Specifications Maximum Input Level
50 mW
Specifications Max Primary Unbalanced Dc Current
1.0 mA
Specifications Non Condensing Relative Storage Humidity
10 to 95 %
Specifications Operating Temperature
-40 to 85 ºC
Specifications Overall Turn Ratio
55:8:1:0
Specifications Pri Sec Hipot Test Pri Sec
1,000 VRMS for 1 Second
Specifications Storage Temperature
-40 to 85 ºC
Specifications Working Direct Current Dc Voltage
150 V
Technical Notes 0

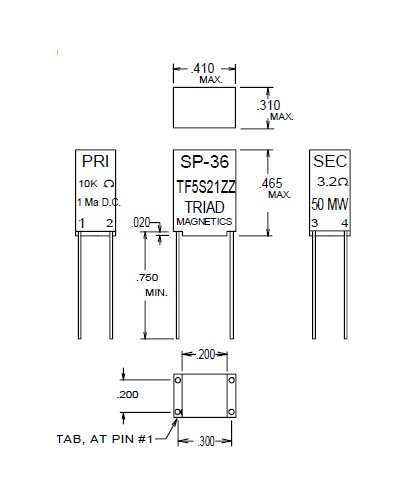

Plug-in terminals are precision spaced to provide fixed mounting centers.Red Spec transformers are hi-pot tested at 1,000 VRMS.150 VDC working voltage.Red Spec transformers feature small footprint base dimensions of 0.310 by 0.410 inch.Pin diameter = 0.020 inch.
