Miniature Audio Impedance Matching Transformers - Red Spec
Miniature Audio Impedance Matching Transformers - Red Spec
SKU:AUD-9fcbd8
Enhance audio designs with precision-crafted Miniature Impedance Matching Transformers - Red Spec, meeting Mil-T-27E standards for superior performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Miniature Audio Impedance Matching Transformers - Red Spec
$29.99
Quantity: 1
Claim Your Seller Account
Miniature Audio Impedance Matching Transformers - Red Spec
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Elevate your audio designs with Triad's Miniature Impedance Matching Transformers - Red Spec. Meeting Mil-T-27E standards, these transformers offer a durable and precise solution for Mil-Aero, Medical, and Pro Audio applications. With a frequency response range of ±2.0 dB from 300 Hz to 100 kHz, gold plated leads, and hi-pot testing at 1,000 VRMS, these transformers ensure exceptional performance and reliability in demanding environments. The compact design with epoxy molded case and precision construction make them ideal for varied applications requiring high-quality audio transmission.

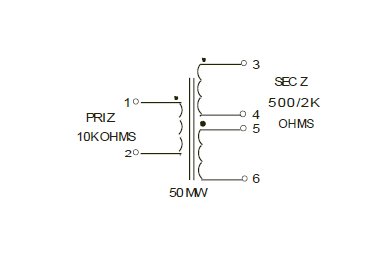

Product Specifications
Construction Construction

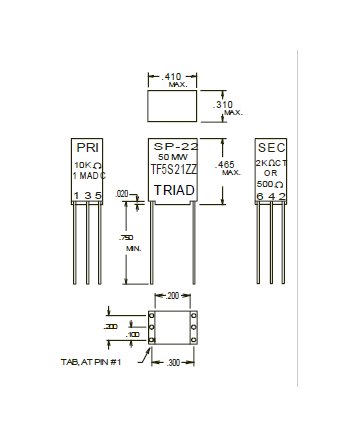

Plug-in terminals are precision spaced to provide fixed mounting centers. UL94 V-0 rated molded case includes a 0.020â recess for ease of solder inspection. Leads are made of high strength Nickel alloy, gold plated and are 0.020â in diameter.
Features Features
Epoxy Molded CaseExceptional Operation from 300 Hz to 100 kHzGold Plated Leads
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Dc Resistance Primary
1050.0 Ohm
Specifications Dc Resistance Secondary
168.0 ohm Split Secondary | 146.0 Ohm
Specifications Frequency Response Range
±2.0 DB, at 300 Hz to 100K Hz
Specifications Industry Standards
Mil-T-27E
Specifications Matching Impedance Primary
10000 Ohm
Specifications Matching Impedance Secondary
2000 Ohm Center Tap | 500 ohm Split Secondary
Specifications Maximum Input Level
50 mW
Specifications Max Primary Unbalanced Dc Current
1.0 mA
Specifications Mil Type Number
TF5S21ZZ
Specifications Non Condensing Relative Storage Humidity
10 to 95 %
Specifications Operating Temperature
-40 to 85 ºC
Specifications Overall Turn Ratio
4.48:1.0:1.0
Specifications Pri Sec Hipot Test Pri Sec
1,000 VRMS for 1 Second
Specifications Storage Temperature
-40 to 85 ºC
Specifications Transformer Contact Type
Center Tap | Split Secondary
Specifications Working Direct Current Dc Voltage
150 V
Technical Notes 0
Plug-in terminals are precision spaced to provide fixed mounting centers.Red Spec transformers are hi-pot tested at 1,000 VRMS.150 VDC working voltage.Red Spec transformers feature small footprint base dimensions of 0.310 by 0.410 inch.Pin diameter = 0.020 inch.
