Miniature Audio Impedance Transformers - Red Spec
Miniature Audio Impedance Transformers - Red Spec
SKU:AUD-2bee90
Enhance audio performance with precision-engineered Miniature Impedance Transformers - Red Spec. Ideal for Mil-Aero, Medical, Pro Audio.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Miniature Audio Impedance Transformers - Red Spec
$49.99
Quantity: 1
Claim Your Seller Account
Miniature Audio Impedance Transformers - Red Spec
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your audio system with Triad's high-reliability Miniature Impedance Matching Transformers - Red Spec. These transformers are meticulously designed to meet the stringent demands of Mil-Aero, Medical, and Pro Audio applications. With a frequency response range of ±2.0 DB from 300 Hz to 100K Hz, a maximum input level of 50 mW, and a matching impedance of 500 Ohm (Primary) and 50 Ohm (Secondary), these transformers ensure precision and durability in all scenarios. The Red Spec transformers feature a small footprint base, gold-plated leads with high strength, and are RoHS compliant, meeting the latest industry standards.
Product Specifications
Construction Construction
Plug-in terminals are precision spaced to provide fixed mounting centers. UL94 V-0 rated molded case includes a 0.020â recess for ease of solder inspection. Leads are made of high strength Nickel alloy, gold plated and are 0.020â in diameter.
Features Features
Epoxy Molded CaseExceptional Operation from 300 Hz to 100 kHzGold Plated Leads
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Dc Resistance Primary
60.0 Ohm
Specifications Dc Resistance Secondary
8.0 Ohm
Specifications Frequency Response Range
±2.0 DB, at 300 Hz to 100K Hz
Specifications Industry Standards
Mil-T-27E

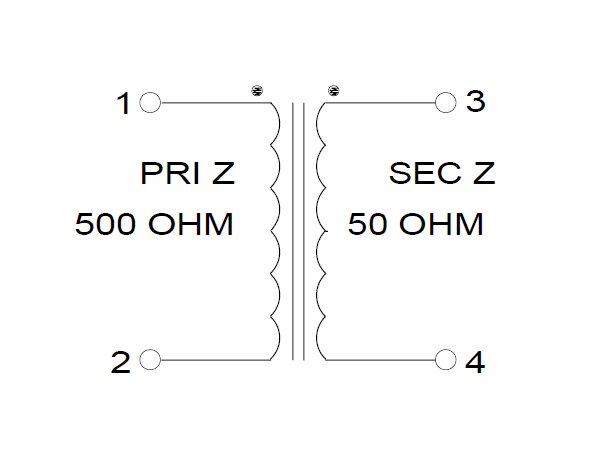

Specifications Matching Impedance Primary
500 Ohm
Specifications Matching Impedance Secondary
50 Ohm
Specifications Maximum Input Level
50 mW
Specifications Max Primary Unbalanced Dc Current
3.0 mA
Specifications Mil Type Number
TF5S21ZZ
Specifications Non Condensing Relative Storage Humidity
10 to 95 %
Specifications Operating Temperature
-40 to 85 ºC
Specifications Overall Turn Ratio
3.16:1.0
Specifications Pri Sec Hipot Test Pri Sec
1,000 VRMS for 1 Second
Specifications Storage Temperature
-40 to 85 ºC
Specifications Working Direct Current Dc Voltage
150 V
Technical Notes 0

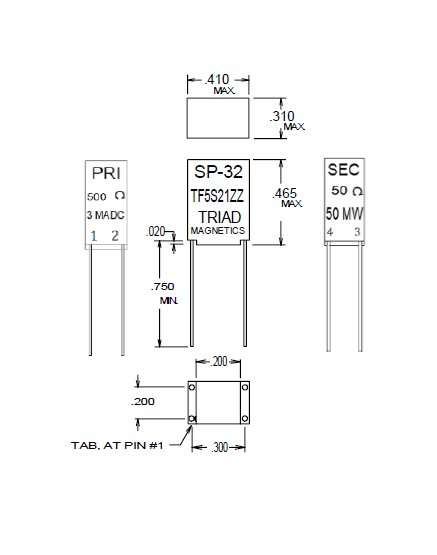

Plug-in terminals are precision spaced to provide fixed mounting centers.Red Spec transformers are hi-pot tested at 1,000 VRMS.150 VDC working voltage.Red Spec transformers feature small footprint base dimensions of 0.310 by 0.410 inch.Pin diameter = 0.020 inch.
