Highly reliable Miniature Impedance Matching Transformers meeting Mil-T-27E Red Spec standards with exceptional frequency range and durability for various applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Miniature Audio Transformers - Impedance Matching Red Spec
$34.99
Quantity: 1
Claim Your Seller Account
Miniature Audio Transformers - Impedance Matching Red Spec
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Miniature Impedance Matching Transformers are precision-engineered for high reliability and durability, meeting the stringent requirements of Mil-T-27E Red Spec standards. With a compact design and exceptional frequency response range from 300 Hz to 100 kHz, these transformers are ideal for Mil-Aero, Medical, and Pro Audio applications. Featuring gold-plated leads, epoxy molded case, and compliance with industry standards, these transformers ensure optimal performance and longevity even in demanding designs.
Product Specifications
Construction Construction
Plug-in terminals are precision spaced to provide fixed mounting centers. UL94 V-0 rated molded case includes a 0.020â recess for ease of solder inspection. Leads are made of high strength Nickel alloy, gold plated and are 0.020â in diameter.
Features Features
Epoxy Molded CaseExceptional Operation from 300 Hz to 100 kHzGold Plated Leads
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Dc Resistance Primary
104.0 Ohm
Specifications Dc Resistance Secondary
96.0 Ohm
Specifications Frequency Response Range
±2.0 DB, at 300 Hz to 100K Hz
Specifications Industry Standards
Mil-T-27E

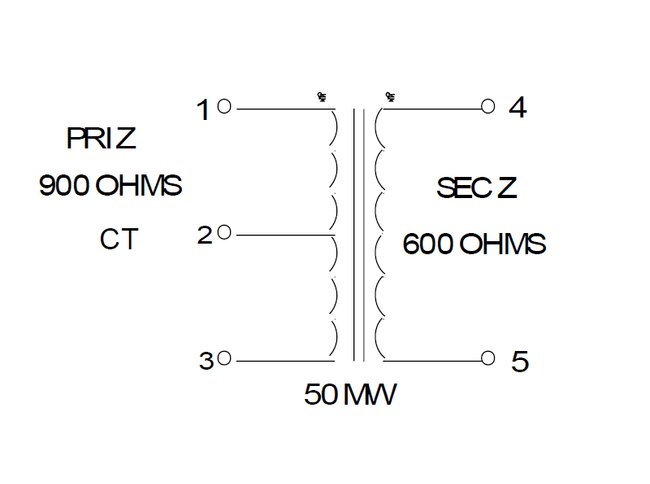

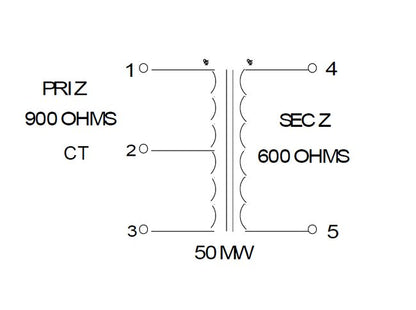

Specifications Matching Impedance Primary
900 ohm Center Tap
Specifications Matching Impedance Secondary
600 Ohm
Specifications Maximum Input Level
50 mW
Specifications Max Primary Unbalanced Dc Current
4.0 mA
Specifications Mil Type Number
TF5S21ZZ
Specifications Non Condensing Relative Storage Humidity
10 to 95 %
Specifications Operating Temperature
-40 to 85 ºC
Specifications Overall Turn Ratio
1.22:1.0
Specifications Pri Sec Hipot Test Pri Sec
1,000 VRMS for 1 Second
Specifications Storage Temperature
-40 to 85 ºC
Specifications Transformer Contact Type
Center Tap
Specifications Working Direct Current Dc Voltage
150 V
Technical Notes 0

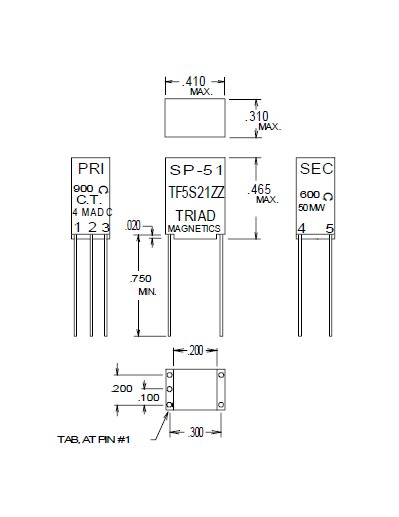

Plug-in terminals are precision spaced to provide fixed mounting centers.Red Spec transformers are hi-pot tested at 1,000 VRMS.150 VDC working voltage.Red Spec transformers feature small footprint base dimensions of 0.310 by 0.410 inch.Pin diameter = 0.020 inch.
