Miniature Audio Transformers - Red Spec
Miniature Audio Transformers - Red Spec
SKU:AUD-5a2ef1
Enhance audio systems with precision and durability. Wide frequency range, epoxy molded case, gold plated leads. RoHS compliant.
Regular price
$37.99
Regular price
Sale price
$37.99
Unit price
per
Initiate Order
Miniature Audio Transformers - Red Spec
$37.99
Quantity: 1
Claim Your Seller Account
Miniature Audio Transformers - Red Spec
$37.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your audio systems with Triad's Miniature Impedance Matching Transformers - Red Spec. Designed for reliability and precision, these Mil-T-27E Red Spec transformers offer exceptional performance in Mil-Aero, Medical, and Pro Audio applications. With features like a wide frequency response range of ±2.0 dB, epoxy molded case, and gold plated leads, these transformers provide superior operation from 300 Hz to 100 kHz. The construction includes plug-in terminals, UL94 V-0 rated molded case, and high-strength nickel alloy leads, ensuring durability and quality. RoHS compliant since February 2016, meeting the requirements of the RoHS 3 initiative.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Construction Construction
Plug-in terminals are precision spaced to provide fixed mounting centers. UL94 V-0 rated molded case includes a 0.020â recess for ease of solder inspection. Leads are made of high strength Nickel alloy, gold plated and are 0.020â in diameter.
Features Features
Epoxy Molded CaseExceptional Operation from 300 Hz to 100 kHzGold Plated Leads
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Dc Resistance Primary
18.0 Ohm
Specifications Dc Resistance Secondary
2.7 Ohm
Specifications Frequency Response Range
±2.0 DB, at 300 Hz to 100K Hz
Specifications Industry Standards
Mil-T-27E
Specifications Matching Impedance Primary
150 ohm Center Tap
Specifications Matching Impedance Secondary
12 Ohm
Specifications Maximum Input Level
50 mW
Specifications Max Primary Unbalanced Dc Current
10.0 mA
Specifications Mil Type Number
TF5S21ZZ
Specifications Non Condensing Relative Storage Humidity
10 to 95 %
Specifications Operating Temperature
-40 to 85 ºC
Specifications Overall Turn Ratio
3.54:1.0
Specifications Pri Sec Hipot Test Pri Sec
1,000 VRMS for 1 Second
Specifications Storage Temperature
-40 to 85 ºC
Specifications Transformer Contact Type
Center Tap
Specifications Working Direct Current Dc Voltage
150 V
Technical Notes 0

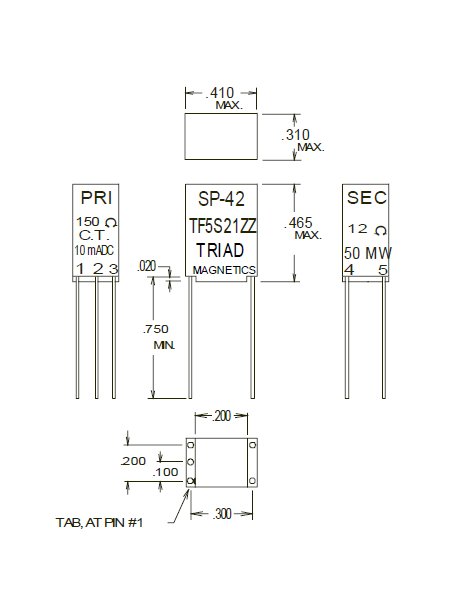

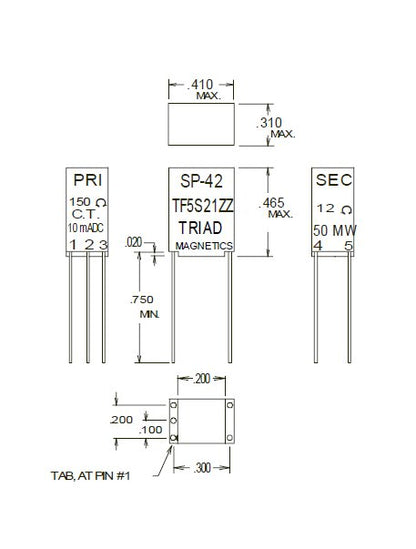

Plug-in terminals are precision spaced to provide fixed mounting centers.Red Spec transformers are hi-pot tested at 1,000 VRMS.150 VDC working voltage.Red Spec transformers feature small footprint base dimensions of 0.310 by 0.410 inch.Pin diameter = 0.020 inch.
