High-reliability Miniature Data/Voice Coupling Transformer for precise audio applications. RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Miniature Data/Voice Coupling Transformer
$29.99
Quantity: 1
Claim Your Seller Account
Miniature Data/Voice Coupling Transformer
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Miniature Data/Voice Coupling Transformer from our Data/Voice Coupling Transformers line is designed to meet the high reliability and precision demands of modern designs. With a power level of 50mW, longitudinal balance frequency of 60dB Min at 1 KHz, and operating temperature range of -40 to 85 °C, this transformer ensures optimal performance in a variety of applications. Its construction features precision-spaced plug-in terminals and a tin-plated lead for easy mounting and solder inspection. RoHS compliant since February 2016, this transformer adheres to the 2015/863/EU standards. Maximize your audio needs with this versatile and durable transformer.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Construction Construction

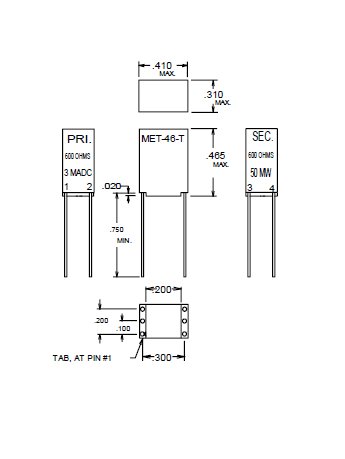

Plug-in terminals are precision spaced to provide fixed mounting centers. Epoxy molded case includes a 0.020" recess for ease of solder inspection. Leads are Tin plated 0.020" in diameter.
Note Note
Maximum power at 300 Hz
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Dc Resistance Primary
85 Ohm
Specifications Dc Resistance Secondary
110 Ohm
Specifications Frequency Response Range
± 1.0 dB, at 300 Hz to 3.5K Hz, 0dBm (1 KHz Ref.)
Specifications Longitudinal Balance Frequency
60dB Min at 1 KHz
Specifications Max Primary Unbalanced Dc Current
3.0 mA
Specifications Operating Temperature
-40 to 85 ºC
Specifications Overall Turn Ratio
1.0:1.0
Specifications Power Level
50 mW
Specifications Primary Matching Impedance
600 Ohm
Specifications Pri Sec Hipot Test Pri Sec
1500 VRMS for 1 Second
Specifications Schematic
Schem
Specifications Secondary Matching Impedance
600 Ohm
Specifications Storage Temperature
-55 to 105 ºC
