Miniature Impedance Matching Transformers - Red Spec - Audio Transformers
$49.99
Quantity: 1
Claim Your Seller Account
Miniature Impedance Matching Transformers - Red Spec - Audio Transformers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your audio designs with Triad's high-reliability Miniature Impedance Matching Transformers from the Mil-T-27E Red Spec series. Designed for demanding Mil-Aero, Medical, and Pro Audio applications, these transformers offer precise impedance matching, exceptional frequency response, and reliable performance from 300 Hz to 100 kHz. Featuring a small footprint, gold-plated leads, and UL94 V-0 rated molded case, these transformers ensure durability and precision. Compliant with industry standards including Mil-T-27E and RoHS, they meet the highest quality and performance requirements.
Product Specifications
Construction Construction
Plug-in terminals are precision spaced to provide fixed mounting centers. UL94 V-0 rated molded case includes a 0.020â recess for ease of solder inspection. Leads are made of high strength Nickel alloy, gold plated and are 0.020â in diameter.
Features Features
Epoxy Molded CaseExceptional Operation from 300 Hz to 100 kHzGold Plated Leads
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Dc Resistance Primary
145.0 Ohm
Specifications Dc Resistance Secondary
8.0 Ohm
Specifications Frequency Response Range
±2.0 DB, at 300 Hz to 100K Hz
Specifications Industry Standards
Mil-T-27E
Specifications Matching Impedance Primary
1000 Ohm
Specifications Matching Impedance Secondary
50 Ohm
Specifications Maximum Input Level
50 mW
Specifications Max Primary Unbalanced Dc Current
3.0 mA
Specifications Mil Type Number
TF5S21ZZ
Specifications Non Condensing Relative Storage Humidity
10 to 95 %
Specifications Operating Temperature
-40 to 85 ºC
Specifications Overall Turn Ratio
4.4:1.0
Specifications Pri Sec Hipot Test Pri Sec
1,000 VRMS for 1 Second
Specifications Storage Temperature
-40 to 85 ºC
Specifications Working Direct Current Dc Voltage
150 V
Technical Notes 0

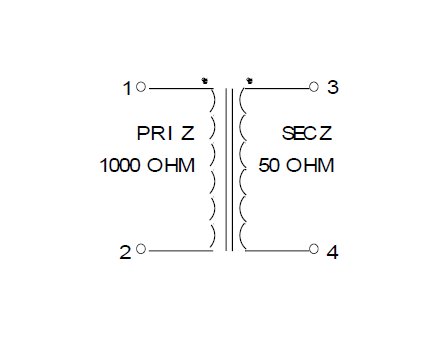

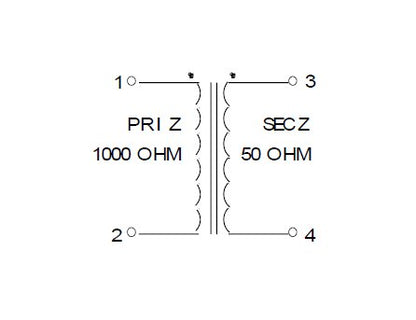

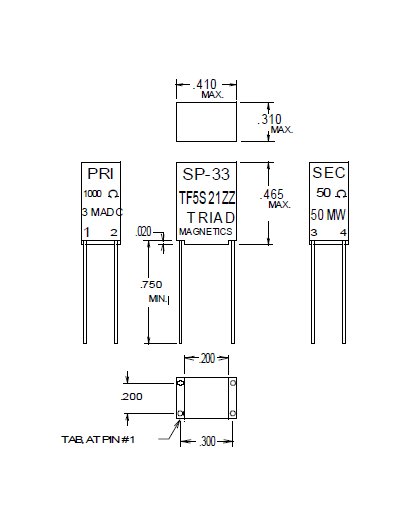

Plug-in terminals are precision spaced to provide fixed mounting centers.Red Spec transformers are hi-pot tested at 1,000 VRMS.150 VDC working voltage.Red Spec transformers feature small footprint base dimensions of 0.310 by 0.410 inch.Pin diameter = 0.020 inch.
