Miniature Impedance Matching Transformers - Red Spec for Audio Applications
Miniature Impedance Matching Transformers - Red Spec for Audio Applications
SKU:AUD-192fa9
High reliability audio transformers optimized for Mil-Aero, Medical, and Pro Audio. Epoxy molded case, gold-plated leads. RoHS compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Miniature Impedance Matching Transformers - Red Spec for Audio Applications
$29.99
Quantity: 1
Claim Your Seller Account
Miniature Impedance Matching Transformers - Red Spec for Audio Applications
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your audio designs with the Miniature Impedance Matching Transformers - Red Spec. These high reliability Mil-T-27E transformers are meticulously constructed for Mil-Aero, Medical, and Pro Audio applications. With precise specifications like a 2.24:1 turn ratio, gold-plated leads, and a wide operating temperature range, these transformers ensure exceptional performance from 300 Hz to 100 kHz. The epoxy molded case and UL94 V-0 rating provide durability and safety. RoHS compliant, meeting 2015/863/EU standards.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Construction Construction
Plug-in terminals are precision spaced to provide fixed mounting centers. UL94 V-0 rated molded case includes a 0.020â recess for ease of solder inspection. Leads are made of high strength Nickel alloy, gold plated and are 0.020â in diameter.
Features Features
Epoxy Molded CaseExceptional Operation from 300 Hz to 100 kHzGold Plated Leads
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Dc Resistance Primary
1050.0 Ohm
Specifications Dc Resistance Secondary
330.0 Ohm
Specifications Frequency Response Range
±2.0 DB, at 300 Hz to 100K Hz
Specifications Industry Standards
Mil-T-27E

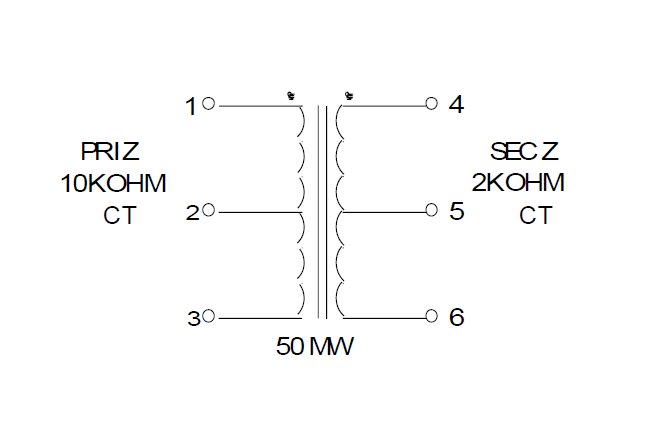

Specifications Matching Impedance Primary
10000 Ohm Center Tap
Specifications Matching Impedance Secondary
2000 Ohm Center Tap
Specifications Maximum Input Level
50 mW
Specifications Max Primary Unbalanced Dc Current
1.0 mA
Specifications Mil Type Number
TF5S21ZZ
Specifications Non Condensing Relative Storage Humidity
10 to 95 %
Specifications Operating Temperature
-40 to 85 ºC
Specifications Overall Turn Ratio
2.24:1.0
Specifications Pri Sec Hipot Test Pri Sec
1,000 VRMS for 1 Second
Specifications Storage Temperature
-40 to 85 ºC
Specifications Transformer Contact Type
Center Tap
Specifications Working Direct Current Dc Voltage
150 V
Technical Notes 0

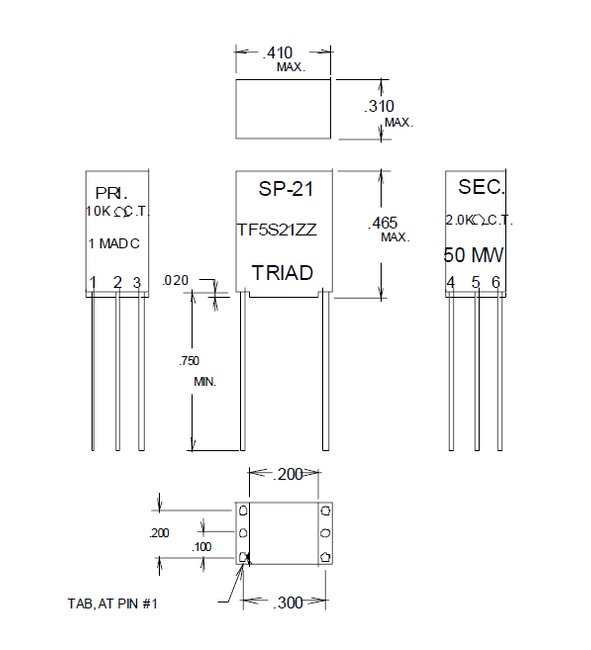

Plug-in terminals are precision spaced to provide fixed mounting centers.Red Spec transformers are hi-pot tested at 1,000 VRMS.150 VDC working voltage.Red Spec transformers feature small footprint base dimensions of 0.310 by 0.410 inch.Pin diameter = 0.020 inch.
