Miniature M55116-Type TAC Connectors
Miniature M55116-Type TAC Connectors
SKU:TAC-f4f558
Meet MIL-DTL-55116 requirements with our Miniature M55116-Type TAC Connectors, 50% smaller for enhanced performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Miniature M55116-Type TAC Connectors
$29.99
Quantity: 1
Claim Your Seller Account
Miniature M55116-Type TAC Connectors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

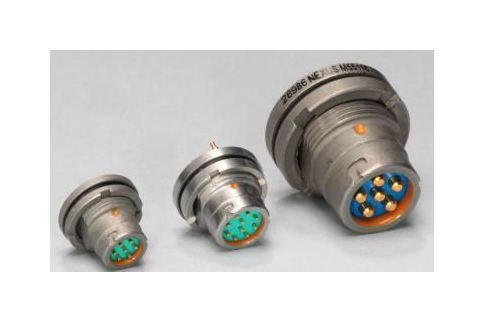

The Miniature M55116-Type TAC Connectors by Amphenol NEXUS Technologies are designed to meet the stringent requirements of MIL-DTL-55116 standards while offering a 50% size reduction compared to standard connectors. These connectors feature a 10-Conductor Panel-Mount Jack style, stainless steel shell material, and gold-plated brass contacts. With a wide temperature range of -55 to 85°C, self-cleaning spring-loaded contacts, and excellent current and voltage ratings, these connectors are the ideal choice for soldier-worn applications, radio systems, and ruggedized communications systems.
Product Specifications
Features 0
Both plug and receptacle are 50% smaller than the standard M55116 connectors (M55116/4 and M55116/10, as a comparison)Standard plugs have rigid contacts; jacks have spring-loaded contacts with solder cup terminalsMolded-in spring-loaded contacts provide self-cleaning feature and eliminate issues with pin/socket open contacts Standard wire strain relief accommodates .125 and .250 cable diameter
Specifications Connector Style
10-Conductor Panel-Mount Jack
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
PCB | Solder Cup
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level
500 V
Specifications Finish
Sand Blast, finish type E300 IAW MIL-F-14072
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications In Line Rear Accessories
Over-Molded | Wire Strain Relief
Specifications Mating
Bayonet Coupling
Specifications Number Of Contacts
10
Specifications Shell Material
Stainless Steel, Passivated
Specifications Shell Styles
Panel Mount Jack
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
