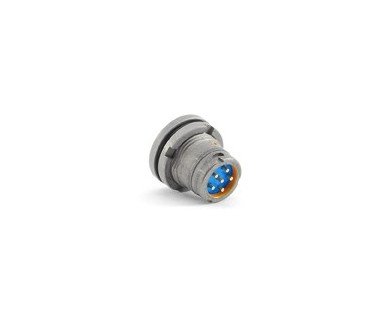

Miniature M55116-Type TAC Connectors by Amphenol NEXUS
Miniature M55116-Type TAC Connectors by Amphenol NEXUS
SKU:TAC-85a308
Explore Amphenol NEXUS's Miniature M55116-Type TAC Connectors - Compact, robust, and MIL-DTL-55116 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Miniature M55116-Type TAC Connectors by Amphenol NEXUS
$29.99
Quantity: 1
Claim Your Seller Account
Miniature M55116-Type TAC Connectors by Amphenol NEXUS
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Amphenol NEXUS introduces compact Miniature M55116-Type TAC Connectors, meeting MIL-DTL-55116 requirements for soldier-worn, radio, and ruggedized communication systems. These connectors, 50% smaller than standard M55116 models, feature stainless steel shells, gold-plated brass contacts, and a temperature range of -55 to 85°C. With bayonet coupling and self-cleaning spring-loaded contacts, they ensure reliable performance in demanding environments.
Product Specifications
Features 0
Both plug and receptacle are 50% smaller than the standard M55116 connectors (M55116/4 and M55116/10, as a comparison)Standard plugs have rigid contacts; jacks have spring-loaded contacts with solder cup terminalsMolded-in spring-loaded contacts provide self-cleaning feature and eliminate issues with pin/socket open contacts Standard wire strain relief accommodates .125 and .250 cable diameter
Specifications Connector Style
6-Conductor Panel Mount Jack
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
PCB | Solder Cup
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level
500 V
Specifications Finish
Sand Blast, finish type E300 IAW MIL-F-14072
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications In Line Rear Accessories
Over-Molded | Wire Strain Relief
Specifications Mating
Bayonet Coupling
Specifications Number Of Contacts
6
Specifications Shell Material
Stainless Steel, Passivated
Specifications Shell Styles
Panel Mount Jack
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
