Miniature MIL-DTL-55116 TAC Connectors

Name: Miniature MIL-DTL-55116 TAC Connectors
Brand: Amphenol NEXUS Technologies
SKU: TAC-8b6afa
Price: 29.99 USD
Availability: OutOfStock

SKU:TAC-8b6afa

Compact yet powerful Miniature MIL-DTL-55116 TAC Connectors for military and commercial applications with stainless steel shells, self-cleaning contacts, and MIL-DTL-55116 compliance.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

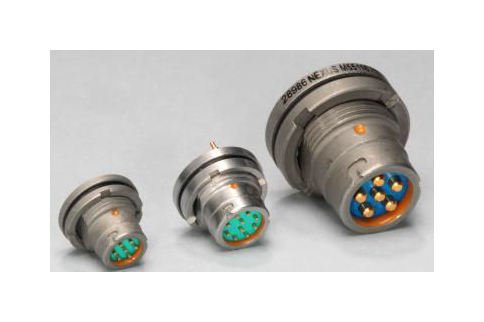

Introducing the Miniature MIL-DTL-55116 TAC Connectors by Amphenol NEXUS Technologies, designed to meet the rigorous demands of military and commercial applications. These connectors pack performance into a compact size, half that of standard connectors, while offering features like rigid or spring-loaded contacts, self-cleaning capabilities, and wire strain relief. With stainless steel shells, gold-plated brass contacts, and compliance with MIL-DTL-55116 requirements, these connectors ensure reliability and durability in soldier-worn, radio, and communication systems.

Product Specifications

Features 0

Both plug and receptacle are 50% smaller than the standard M55116 connectors (M55116/4 and M55116/10, as a comparison)Standard plugs have rigid contacts; jacks have spring-loaded contacts with solder cup terminalsMolded-in spring-loaded contacts provide self-cleaning feature and eliminate issues with pin/socket open contacts Standard wire strain relief accommodates .125 and .250 cable diameter

Specifications Connector Style

10-Conductor In-Line Jack (for Overmolding)

Specifications Contact Material

Gold-plated Brass / Silver-plated BeCu (Springs)

Specifications Contact Resistance Maximum

.050 O

Specifications Contact Types

PCB | Solder Cup

Specifications Current Rating

0.5 A

Specifications Dielectric Withstanding Voltage Sea Level

500 V

Specifications Finish

Sand Blast, finish type E300 IAW MIL-F-14072

Specifications Insert Material

Thermoset Plastic

Specifications Insulation Resistance

1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms

Specifications In Line Rear Accessories

Over-Molded | Wire Strain Relief

Specifications Mating

Bayonet Coupling

Specifications Number Of Contacts

Specifications Shell Material

Stainless Steel, Passivated

Specifications Shell Styles

In-Line Jack

Specifications Temperature

-55 to 85 ÂºC

Specifications Voltage Rating Maximum

60 V
