Miniature MIL-DTL-55116 TAC Connectors
Miniature MIL-DTL-55116 TAC Connectors
SKU:TAC-36a5d4
Compact MIL-DTL-55116 TAC Connectors with superior performance for military and commercial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Miniature MIL-DTL-55116 TAC Connectors
$29.99
Quantity: 1
Claim Your Seller Account
Miniature MIL-DTL-55116 TAC Connectors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

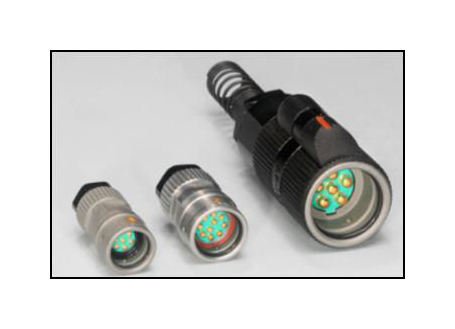

Meet the demands of modern military and commercial applications with our Miniature MIL-DTL-55116 TAC Connectors. Designed by Amphenol NEXUS Technologies to exacting MIL-DTL-55116 standards, these connectors offer a 50% reduction in size without compromising performance. Ideal for soldier-worn gear, radio systems, and ruggedized communications, featuring self-cleaning spring-loaded contacts, wire strain relief, and compact design.
Product Specifications
Features 0
Both plug and receptacle are 50% smaller than the standard M55116 connectors (M55116/4 and M55116/10, as a comparison)Standard plugs have rigid contacts; jacks have spring-loaded contacts with solder cup terminalsMolded-in spring-loaded contacts provide self-cleaning feature and eliminate issues with pin/socket open contacts Standard wire strain relief accommodates .125 and .250 cable diameter
Specifications Connector Style
10-Conductor Plug (for Overmolding)
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
PCB | Solder Cup
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level
500 V
Specifications Finish
Sand Blast, finish type E300 IAW MIL-F-14072
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications In Line Rear Accessories
Over-Molded | Wire Strain Relief
Specifications Mating
Bayonet Coupling
Specifications Number Of Contacts
10
Specifications Shell Material
Stainless Steel, Passivated
Specifications Shell Styles
Plug
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
