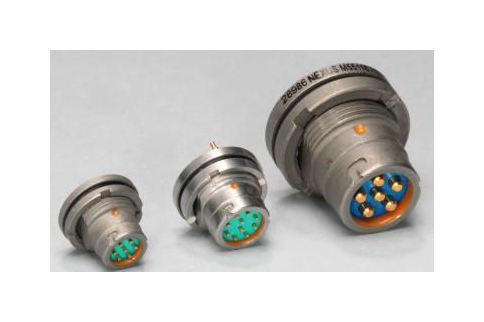

The Miniature Military Grade TAC Connectors by Amphenol NEXUS Technologies are engineered to meet the stringent MIL-DTL-55116 requirements while being 50% smaller than standard connectors. Built for soldier-worn applications, radio systems, and ruggedized communication systems, these connectors feature 6-Conductor In-Line Jack style, spring-loaded contacts for self-cleaning, and a durable construction of stainless steel and gold-plated brass. With a temperature range of -55 to 85°C and a current rating of 0.5A, these connectors offer reliable performance and reduced size and weight without compromising quality.
Product Specifications
Features 0
Both plug and receptacle are 50% smaller than the standard M55116 connectors (M55116/4 and M55116/10, as a comparison)Standard plugs have rigid contacts; jacks have spring-loaded contacts with solder cup terminalsMolded-in spring-loaded contacts provide self-cleaning feature and eliminate issues with pin/socket open contacts Standard wire strain relief accommodates .125 and .250 cable diameter
Specifications Connector Style
6-Conductor In-Line Jack
Specifications Contact Material
Gold-plated Brass / Silver-plated BeCu (Springs)
Specifications Contact Resistance Maximum
.050 O
Specifications Contact Types
PCB | Solder Cup
Specifications Current Rating
0.5 A
Specifications Dielectric Withstanding Voltage Sea Level
500 V
Specifications Finish
Sand Blast, finish type E300 IAW MIL-F-14072
Specifications Insert Material
Thermoset Plastic
Specifications Insulation Resistance
1000 megaohms min, except for connectors unmated after immersion test shall not be less than 100 megaohms
Specifications In Line Rear Accessories
Over-Molded | Wire Strain Relief
Specifications Mating
Bayonet Coupling
Specifications Number Of Contacts
6
Specifications Shell Material
Stainless Steel, Passivated
Specifications Shell Styles
In-Line Jack
Specifications Temperature
-55 to 85 ºC
Specifications Voltage Rating Maximum
60 V
