Miniature Nylon Wire Saddle .138" Mounting Hole - 22-1 Series
Miniature Nylon Wire Saddle .138" Mounting Hole - 22-1 Series
SKU:03W-ce6806
Nylon wire saddle for secure wire routing, RoHS compliant, suitable for varied temperatures. Ideal for .093 chassis thickness.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Miniature Nylon Wire Saddle .138" Mounting Hole - 22-1 Series
$25.99
Quantity: 1
Claim Your Seller Account
Miniature Nylon Wire Saddle .138" Mounting Hole - 22-1 Series
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Miniature Nylon Wire Saddle from the 22-1 Series is designed for reliable wire routing in various applications. Constructed from Nylon 66 material, this wire saddle is UL94V-2 rated for enhanced safety. It is RoHS compliant and offers a temperature range from -40 to 185°F, making it suitable for diverse environments. With dimensions of .240" x .360" (L1 x L2) and a .138" mounting hole diameter, this wire saddle is ideal for .093 chassis thickness. Durable and versatile, this product ensures efficient wire management while meeting industry standards.

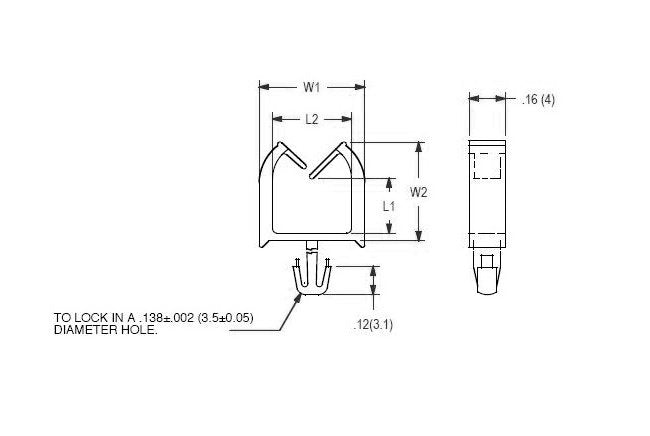

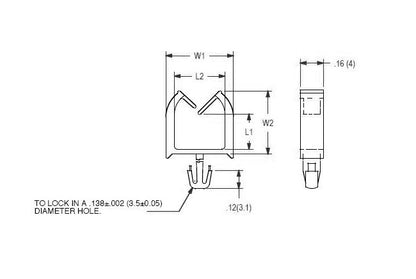

Product Specifications
Specifications Dim L1
.240 (6.0) inches (mm)
Specifications Dim L2
.360 (9.1) inches (mm)
Specifications Dim W1
.470 (12.0) inches (mm)
Specifications Dim W2
.440 (11.2) inches (mm)
Specifications Mounting Hole Diameter
.138 (3.5) inches (mm)
Specifications Panel Thickness
.024 - .063 (.6 - 1.6) inches (mm)
