Miniature Nylon Wire Saddles .070 Mounting Hole
Miniature Nylon Wire Saddles .070 Mounting Hole
SKU:03W-7288f6
Versatile Miniature Nylon Wire Saddles for secure wire routing. Nylon 66 material, ASTM & PA111 standards compliant, RoHS certified.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Miniature Nylon Wire Saddles .070 Mounting Hole
$29.99
Quantity: 1
Claim Your Seller Account
Miniature Nylon Wire Saddles .070 Mounting Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 53 (53-1) Series Miniature Nylon Wire Saddles are the ideal solution for wire routing in various applications. These wire saddles are designed for use with different chassis thicknesses, offering versatility and reliable support for wiring setups. Constructed from Nylon 66 UL94V-2 material, with the option for V-0 grade, these wire saddles provide durability and heat resistance. The saddles meet ASTM D 4066 and PA111 standards, ensuring quality and performance. RoHS compliant and featuring a temperature range of -40 to 185 F (-40 to 85 C), these wire saddles are a dependable choice for wire organization needs.
Ready to Grow Without Cash Flow Constraints?

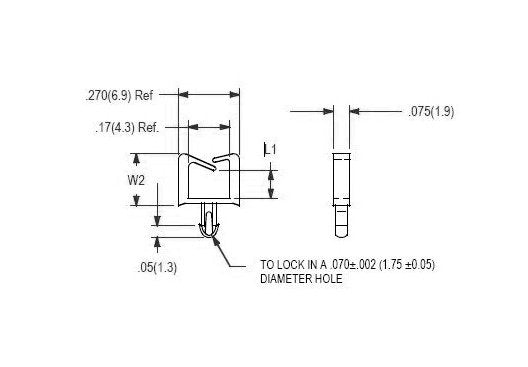

Product Specifications
Specifications Dim L1
.33 (8.5) inches (mm)
Specifications Dim W2
.44 (11.2) inches (mm)
Specifications Panel Thickness
.087 (2.2) inches (mm)
