Miniature Piezo Linear Translation Stage - Q-521

Name: Miniature Piezo Linear Translation Stage - Q-521
Brand: PI (Physik Instrumente) L.P.
SKU: CER-c8e28d
Price: 599.99 USD
Availability: OutOfStock

SKU:CER-c8e28d

Precise miniature linear stage with piezo inertia drive, high resolution, and vacuum compatibility for microassembly, photonics, and more.

$599.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

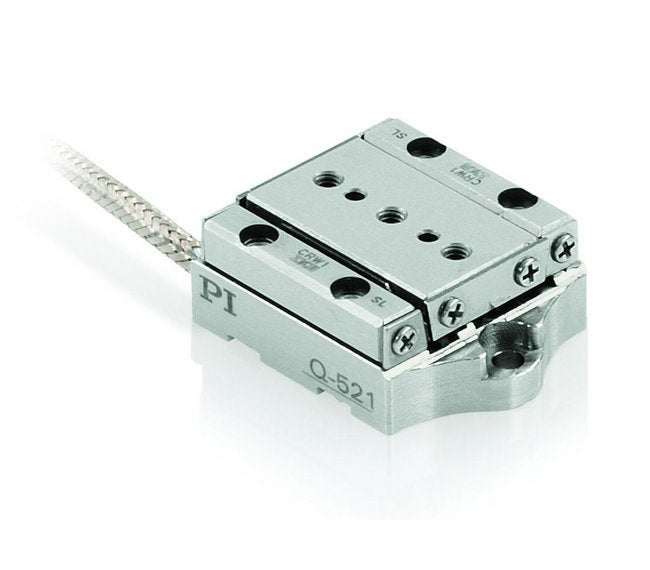

The Q-521 Q-Motion® Miniature Linear Translation Stage is the smallest in its class, offering precise position control, high resolution, and affordability. This stage features a piezoelectric inertia drive that provides space-saving capabilities with high holding forces and virtually unlimited travel range. With an operating frequency of up to 20 kHz, it achieves velocities of max. 6 mm/s. Equipped with a non-contact measuring optical linear encoder and a reference switch, this stage ensures accuracy with a resolution of 4 nm or 1 nm, depending on the version. Ideal for microassembly, photonics, microscopy, semiconductor technology, and more.
