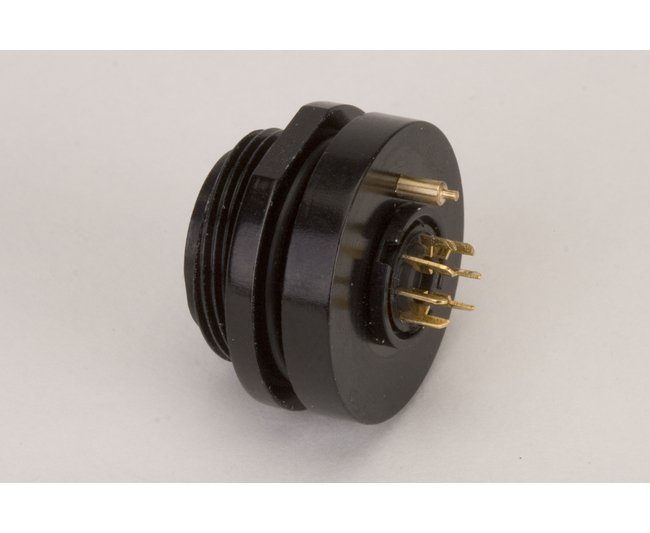

Miniature Rear Panel Mount Waterproof Jack with Locking Ring - 7 Conductor

Name: Miniature Rear Panel Mount Waterproof Jack with Locking Ring - 7 Conductor
Brand: Amphenol NEXUS Technologies
SKU: 7AN-d9793f
Price: 24.99 USD
Availability: OutOfStock

SKU:7AN-d9793f

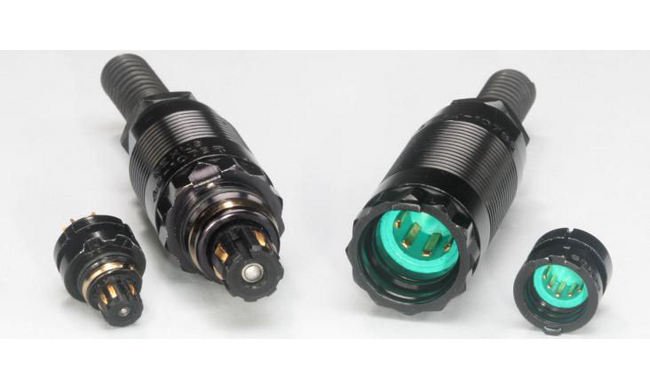

High-performance miniature 7 conductor waterproof jack with locking ring for ruggedized applications. Mates with AP-117LR-AL.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Miniature Rear Panel Mount Waterproof Jack with Locking Ring is a high-performance connector designed for ruggedized commercial and military applications. This 7 conductor connector features solder terminals, a durable aluminum shell with overmold rear accessory, and gold-plated brass contacts for reliable signal transmission. With a temperature range of -55 to 85°C, this connector is built to withstand harsh environments. It offers easy mating with axial push-pull motion and meets engagement and disengagement force requirements. With a contact current capacity of 3A and contact resistance of ≤150 mV, this connector ensures secure and efficient connectivity for your critical systems. Mates with AP-117LR-AL.

Product Specifications

Specifications Application

Ruggedized Commercial / Military

Specifications Conductors

Specifications Contact Current Capacity

3 A

Specifications Contact Material

Gold-plated Brass

Specifications Contact Resistance

â¤ 150 mV

Specifications Contact Types

Solder

Specifications Disengagement Force

8 to 12 lb

Specifications Engagement Force

â¤ 14 lb

Specifications Insert Material

Thermoset Plastic

Specifications Mating

Axial Push-Pull Motion

Specifications Mating Cycles

5000

Specifications Plating Material

Black Anodize (standard) | Black Chrome (shielded)

Specifications Rear Accessory

Overmold

Specifications Shell Material

Aluminum

Specifications Temperature

-55 to 85 ÂºC
