Miniature Red Spec Impedance Matching Transformers
Miniature Red Spec Impedance Matching Transformers
SKU:AUD-4c5a58
Enhance audio clarity with Triad's Miniature Red Spec Impedance Matching Transformers. Ideal for Mil-Aero, Medical, and Pro Audio. Wide Frequency Response Range for exceptional fidelity.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
Miniature Red Spec Impedance Matching Transformers
$45.99
Quantity: 1
Claim Your Seller Account
Miniature Red Spec Impedance Matching Transformers
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance audio clarity with Triad's Miniature Red Spec Impedance Matching Transformers, meticulously crafted for durability and precision in demanding designs. These Mil-T-27E compliant transformers offer a Frequency Response Range of ±2.0 dB from 300 Hz to 100 KHz, ensuring exceptional audio fidelity across diverse applications such as Mil-Aero, Medical, and Pro Audio. With a compact footprint and gold-plated leads, these transformers provide reliable operation and efficiency from -40 to 85 ºC.
Product Specifications
Construction Construction

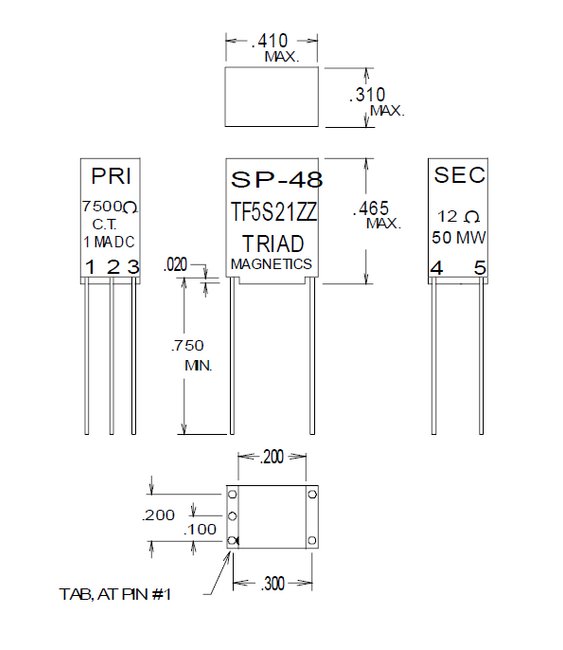

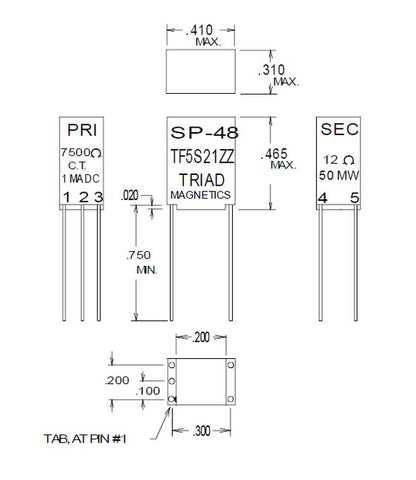

Plug-in terminals are precision spaced to provide fixed mounting centers. UL94 V-0 rated molded case includes a 0.020â recess for ease of solder inspection. Leads are made of high strength Nickel alloy, gold plated and are 0.020â in diameter.
Features Features
Epoxy Molded CaseExceptional Operation from 300 Hz to 100 kHzGold Plated Leads
Rohs Compliance Rohs Compliance
As of manufacturing date February 2016, all standard products meet the requirements of 2015/863/EU, known as the RoHS 3 initiative.
Specifications Dc Resistance Primary
796.0 Ohm
Specifications Dc Resistance Secondary
2.9 Ohm
Specifications Frequency Response Range
±2.0 DB, at 300 Hz to 100K Hz
Specifications Industry Standards
Mil-T-27E

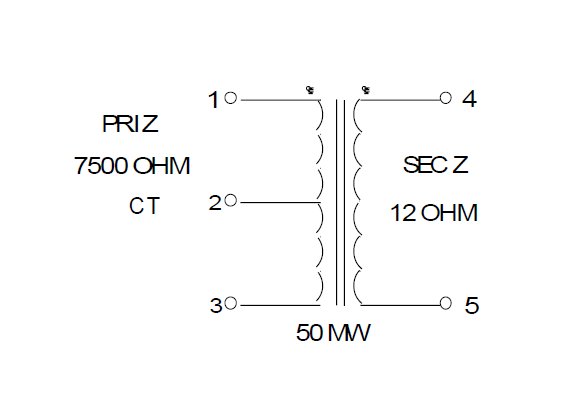

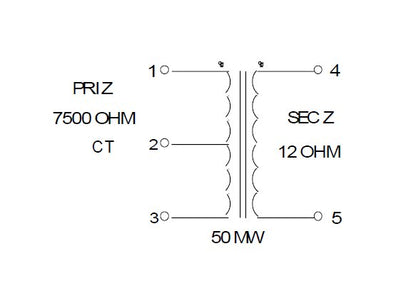

Specifications Matching Impedance Primary
7500 ohm Center Tap
Specifications Matching Impedance Secondary
12 Ohm
Specifications Maximum Input Level
50 mW
Specifications Max Primary Unbalanced Dc Current
1.0 mA
Specifications Mil Type Number
TF5S21ZZ
Specifications Non Condensing Relative Storage Humidity
10 to 95 %
Specifications Operating Temperature
-40 to 85 ºC
Specifications Overall Turn Ratio
25.0:1.0
Specifications Pri Sec Hipot Test Pri Sec
1,000 VRMS for 1 Second
Specifications Storage Temperature
-40 to 85 ºC
Specifications Transformer Contact Type
Center Tap
Specifications Working Direct Current Dc Voltage
150 V
Technical Notes 0
Plug-in terminals are precision spaced to provide fixed mounting centers.Red Spec transformers are hi-pot tested at 1,000 VRMS.150 VDC working voltage.Red Spec transformers feature small footprint base dimensions of 0.310 by 0.410 inch.Pin diameter = 0.020 inch.
