Miniature Support Post with .125 Board Hole and .125 Chassis Hole

Name: Miniature Support Post with .125 Board Hole and .125 Chassis Hole
Brand: All Electronics Hardware
SKU: 01C-4ddfd2
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-4ddfd2

Securely mount circuit boards with the 16 Series Miniature Support Post featuring .125 board hole/chassis hole, easy installation, and RoHS compliance.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

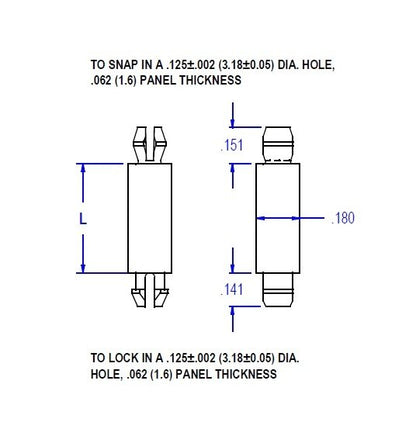

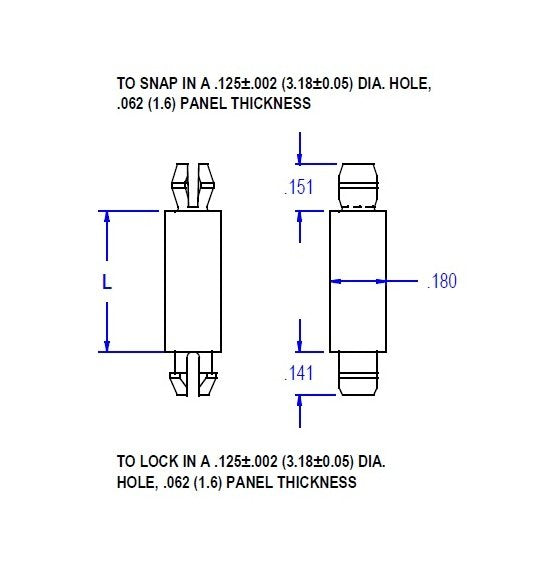

The 16 Series Miniature Support Post is designed for precise circuit board support, with a .125 inch board hole and .125 inch chassis hole for secure installation. This support post easily snaps into the PCB and locks into the chassis, allowing for quick hand installation and convenient release during repairs. Made from Nylon 66 UL94V-2 material, this support post is RoHS compliant and meets ASTM D 4066 and PA0113 standards. It offers a temperature range from -40 to 185F (-40 to 85C), ensuring durability and reliability in various environments.
