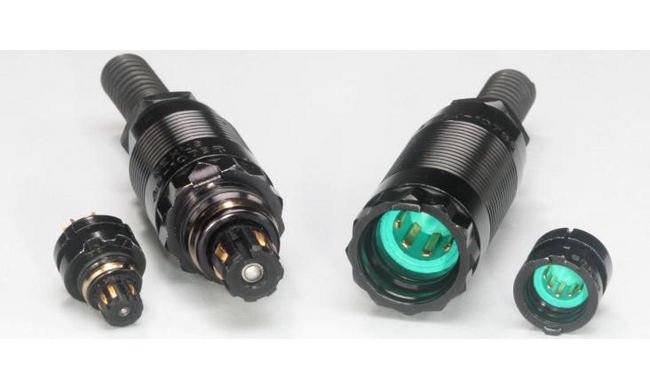

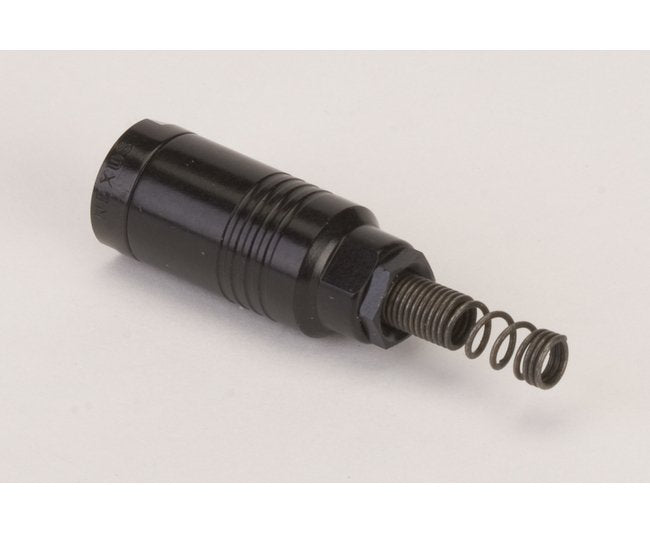

Miniature Waterproof 7-Pin Jack with Wire Strain Relief

Name: Miniature Waterproof 7-Pin Jack with Wire Strain Relief
Brand: Amphenol NEXUS Technologies
SKU: 7AN-650688
Price: 24.99 USD
Availability: OutOfStock

SKU:7AN-650688

Ruggedized 7-Pin waterproof jack with strain relief, gold-plated brass contacts, max .148" cable dia, for military/commercial use.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Miniature Waterproof 7-Pin Jack with Wire Strain Relief is a ruggedized commercial and military-grade connector designed for demanding environments. With gold-plated brass contacts and a thermoset plastic insert, this connector ensures reliable performance. It features a wire strain relief for cables up to .148" in diameter, making it ideal for various applications. With a temperature range of -55 to 85°C and a contact current capacity of 3A, this connector meets stringent durability and conductivity requirements. Mating is easily achieved through an axial push-pull motion, with an engagement force of ≤ 14 lb, ensuring secure connections even in high-vibration settings.

Product Specifications

Specifications Application

Ruggedized Commercial / Military

Specifications Conductors

Specifications Contact Current Capacity

3 A

Specifications Contact Material

Gold-plated Brass

Specifications Contact Resistance

â¤ 150 mV

Specifications Contact Types

Solder

Specifications Disengagement Force

8 to 12 lb

Specifications Engagement Force

â¤ 14 lb

Specifications Insert Material

Thermoset Plastic

Specifications Mating

Axial Push-Pull Motion

Specifications Mating Cycles

5000

Specifications Plating Material

Black Anodize (standard) | Black Chrome (shielded)

Specifications Rear Accessory

Wire Strain Relief (.148 max)

Specifications Shell Material

Aluminum

Specifications Temperature

-55 to 85 ÂºC
