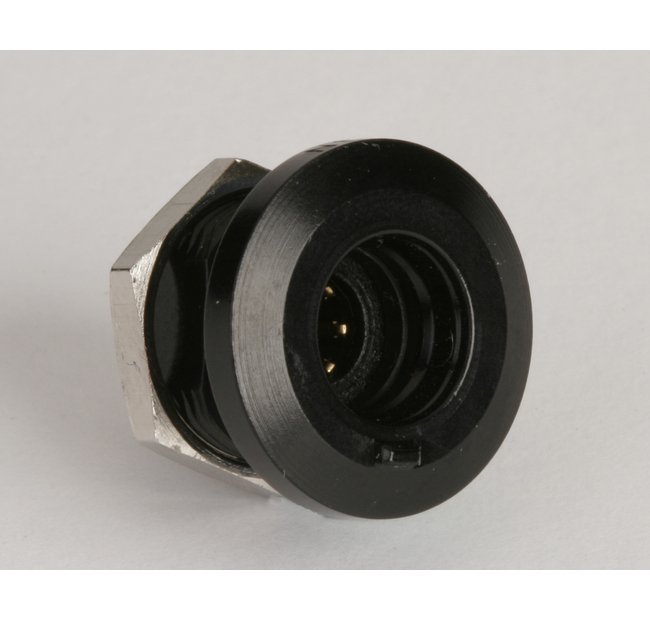

Miniature Waterproof Front Panel Mount Jack for AP-117 Series

Name: Miniature Waterproof Front Panel Mount Jack for AP-117 Series
Brand: Amphenol NEXUS Technologies
SKU: 7AN-a102e6
Price: 24.99 USD
Availability: OutOfStock

SKU:7AN-a102e6

Ruggedized Miniature Waterproof Jack for AP-117 Series, 7 Conductor, Gold-plated Brass, Solder Terminals, -55 to 85°C, Durable & Reliable

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Miniature Waterproof Front Panel Mount Jack is a ruggedized commercial/military-grade connector designed for harsh environments. With 7 gold-plated brass conductors and solder terminals, it ensures reliable connectivity. This jack features black anodized aluminum shell, axial push-pull mating, and a wide temperature range of -55 to 85°C, suitable for various applications. Meeting stringent industry standards, including 5000 mating cycles and contact resistance of ≤ 150 mV, it guarantees durability and performance. Nut and lockwasher included for easy installation.

Product Specifications

Specifications Application

Ruggedized Commercial / Military

Specifications Conductors

Specifications Contact Current Capacity

3 A

Specifications Contact Material

Gold-plated Brass

Specifications Contact Resistance

â¤ 150 mV

Specifications Contact Types

Solder

Specifications Disengagement Force

8 to 12 lb

Specifications Engagement Force

â¤ 14 lb

Specifications Insert Material

Thermoset Plastic

Specifications Mating

Axial Push-Pull Motion

Specifications Mating Cycles

5000

Specifications Plating Material

Black Anodize (standard) | Black Chrome (shielded)

Specifications Shell Material

Aluminum

Specifications Temperature

-55 to 85 ÂºC

Miniature Waterproof Front Panel Mount Jack for AP-117 Series
