Miniature Waterproof Jack Over Mold Connector, 7-Pin

Name: Miniature Waterproof Jack Over Mold Connector, 7-Pin
Brand: Amphenol NEXUS Technologies
SKU: 7AN-457d12
Price: 29.99 USD
Availability: OutOfStock

SKU:7AN-457d12

Rugged 7-pin waterproof jack with gold-plated brass contacts, aluminum shell, and axial push-pull mating. Military-grade durability.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

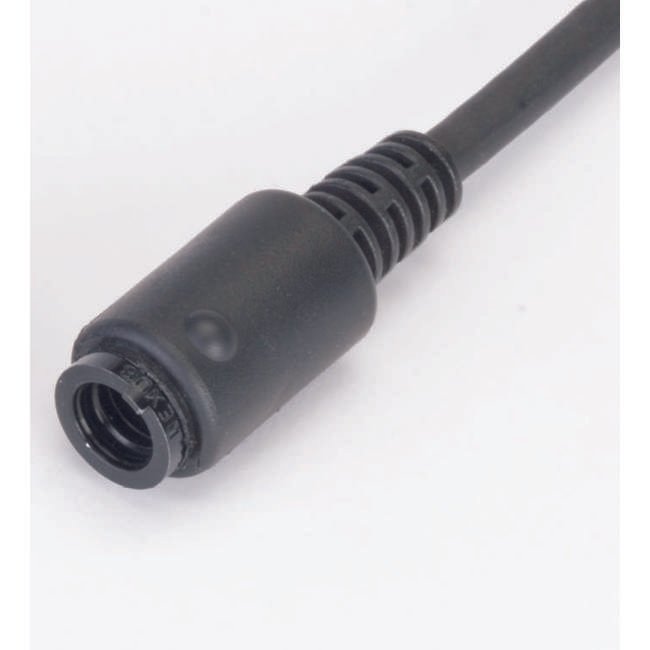

The Miniature Waterproof Jack Over Mold Connector is a ruggedized commercial/military grade connector with 7 conductors. Featuring gold-plated brass contacts, thermoset plastic insert material, and black anodized aluminum shell, this connector ensures reliable performance in harsh environments. With axial push-pull mating motion and an engagement force of ≤14 lb, this connector offers durability and ease of use. It meets rigorous military standards for temperature range, contact current capacity, and mating cycles, making it ideal for demanding applications.

Product Specifications

Specifications Application

Ruggedized Commercial / Military

Specifications Conductors

Specifications Contact Current Capacity

3 A

Specifications Contact Material

Gold-plated Brass

Specifications Contact Resistance

â¤ 150 mV

Specifications Contact Types

Solder

Specifications Disengagement Force

8 to 12 lb

Specifications Engagement Force

â¤ 14 lb

Specifications Insert Material

Thermoset Plastic

Specifications Mating

Axial Push-Pull Motion

Specifications Mating Cycles

5000

Specifications Plating Material

Black Anodize (standard) | Black Chrome (shielded)

Specifications Rear Accessory

Overmold

Specifications Shell Material

Aluminum

Specifications Temperature

-55 to 85 ÂºC

Miniature Waterproof Jack Over Mold Connector, 7-Pin
