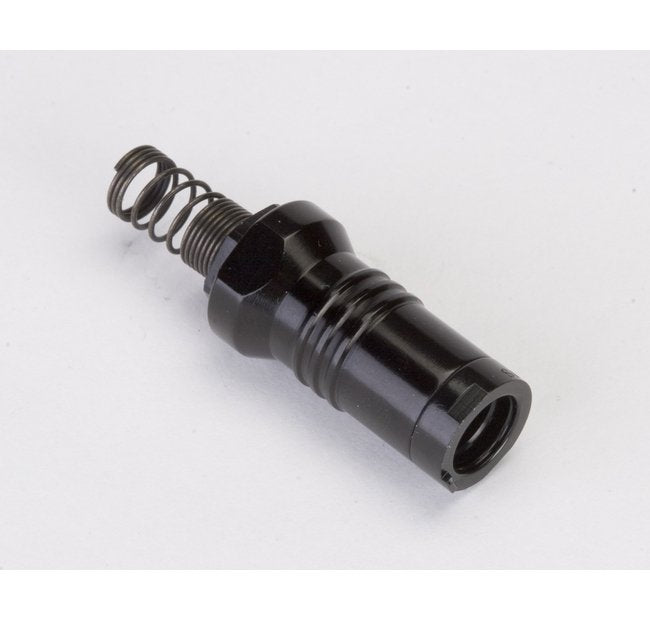

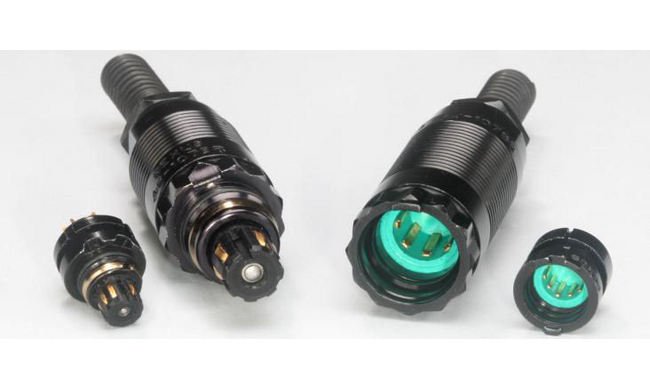

Miniature Waterproof Jack with Strain Relief & Solder Terminals - 7-Pin
Miniature Waterproof Jack with Strain Relief & Solder Terminals - 7-Pin
SKU:7AN-9c2a25
Rugged 7-Pin Waterproof Jack with Strain Relief & Solder Terminals for secure connections in harsh environments.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Miniature Waterproof Jack with Strain Relief & Solder Terminals - 7-Pin
$24.99
Quantity: 1
Claim Your Seller Account
Miniature Waterproof Jack with Strain Relief & Solder Terminals - 7-Pin
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Miniature Waterproof Jack with Strain Relief & Solder Terminals is engineered for ruggedized commercial and military applications, featuring 7 gold-plated brass conductors for reliable connectivity. With a rear wire strain relief that supports cables up to .250" in diameter, this connector ensures secure and durable connections. Its aluminum shell and thermoset plastic insert provide sturdy construction, meeting high environmental standards. Designed for axial push-pull mating with engagement and disengagement forces of ≤14 lb and 8 to 12 lb respectively, this connector offers long-lasting performance with 5000 mating cycles. With a temperature range of -55 to 85 °C, contact current capacity of 3 A, and contact resistance ≤150 mV, it meets the stringent requirements of government and institutional buyers.
Product Specifications
Specifications Application
Ruggedized Commercial / Military
Specifications Conductors
7
Specifications Contact Current Capacity
3 A
Specifications Contact Material
Gold-plated Brass
Specifications Contact Resistance
⤠150 mV
Specifications Contact Types
Solder
Specifications Disengagement Force
8 to 12 lb
Specifications Engagement Force
⤠14 lb
Specifications Insert Material
Thermoset Plastic
Specifications Mating
Axial Push-Pull Motion
Specifications Mating Cycles
5000
Specifications Plating Material
Black Anodize (standard) | Black Chrome (shielded)
Specifications Rear Accessory
Wire Strain Relief (.250 max)
Specifications Shell Material
Aluminum
Specifications Temperature
-55 to 85 ºC
