Miniature Waterproof Plug with Locking Ring - 7 & 10-Pin Connectors
Miniature Waterproof Plug with Locking Ring - 7 & 10-Pin Connectors
SKU:7AN-1d7b4d

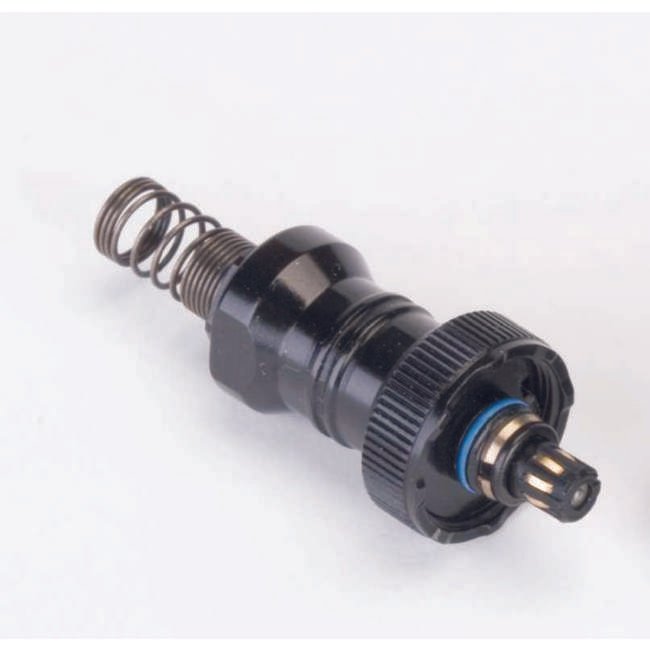

Ruggedized miniature waterproof plug with locking ring, 7 conductors, solder contacts, wire strain relief, gold-plated BeCu, for commercial/military applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Miniature Waterproof Plug with Locking Ring - 7 & 10-Pin Connectors
$29.99
Quantity: 1
Claim Your Seller Account
Miniature Waterproof Plug with Locking Ring - 7 & 10-Pin Connectors
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

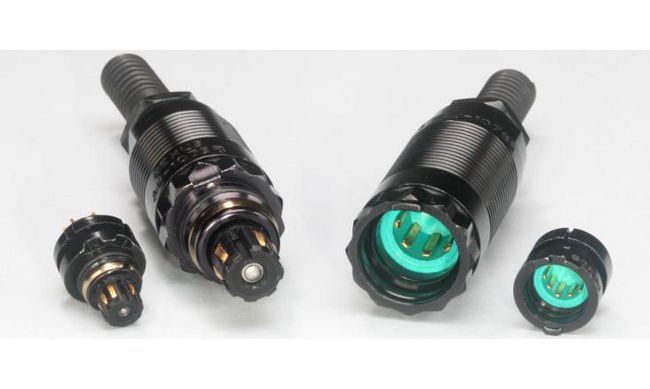

The Miniature Waterproof Plug with Locking Ring is a ruggedized commercial/military-grade connector designed for demanding environments. With seven conductors, gold-plated BeCu contacts, and a thermoset plastic insert, this connector ensures reliable performance in extreme conditions. The included wire strain relief accommodates cables up to .250'' in diameter, offering secure connections. Meeting temperature standards of -55 to 85°C, and with an engagement force ≤ 14 lb, this plug guarantees durability and high performance. Ideal for applications requiring axial push-pull motion, this connector is rated for 5000 mating cycles, making it a dependable choice for mission-critical operations.
Product Specifications
Specifications Application
Ruggedized Commercial / Military
Specifications Conductors
7
Specifications Contact Current Capacity
3 A
Specifications Contact Material
Gold-plated BeCu
Specifications Contact Resistance
⤠150 mV
Specifications Contact Types
Solder
Specifications Disengagement Force
8 to 12 lb
Specifications Engagement Force
⤠14 lb
Specifications Insert Material
Thermoset Plastic
Specifications Mating
Axial Push-Pull Motion
Specifications Mating Cycles
5000
Specifications Plating Material
Black Anodize (standard) | Black Chrome (shielded)
Specifications Rear Accessory
Wire Strain Relief (.250 max)
Specifications Shell Material
Aluminum
Specifications Temperature
-55 to 85 ºC
