Miniature Waterproof Plug with Locking Ring - AJ-117 Series
Miniature Waterproof Plug with Locking Ring - AJ-117 Series
SKU:7AN-14c513
Ruggedized 7-pin waterproof plug with locking ring for commercial/military use. Gold-plated BeCu contacts, aluminum shell. Secure, durable, and compliant.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Miniature Waterproof Plug with Locking Ring - AJ-117 Series
$34.99
Quantity: 1
Claim Your Seller Account
Miniature Waterproof Plug with Locking Ring - AJ-117 Series
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

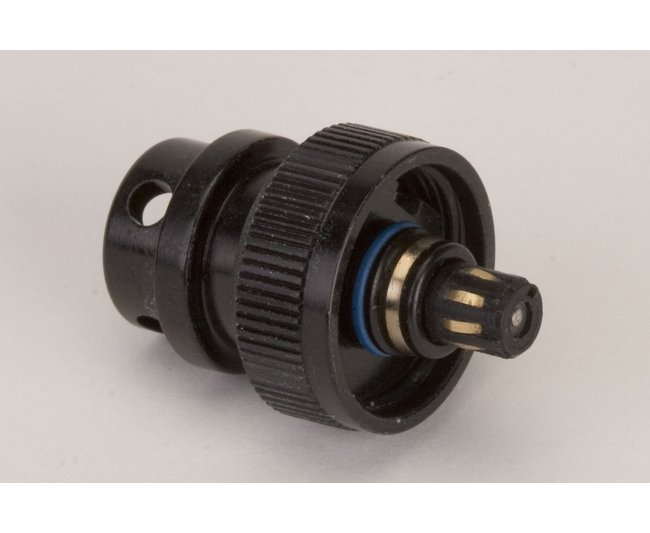

The Miniature Rear Panel Mount Waterproof Plug with Locking Ring is a ruggedized 7-conductor connector designed for commercial and military applications. Featuring gold-plated BeCu contacts, solder terminals, and an aluminum shell with black anodized plating, this connector ensures reliable performance in harsh environments. With a mating cycle rating of 5000 and a temperature range of -55 to 85°C, it offers durability and versatility. Ideal for axial push-pull motions, this connector provides secure connectivity with an engagement force of ≤ 14 lb and disengagement force of 8 to 12 lb. Compliant with industry standards, this connector is a trusted choice for demanding applications.
Product Specifications
Specifications Application
Ruggedized Commercial / Military
Specifications Conductors
7
Specifications Contact Current Capacity
3 A
Specifications Contact Material
Gold-plated BeCu
Specifications Contact Resistance
⤠150 mV
Specifications Contact Types
Solder
Specifications Disengagement Force
8 to 12 lb
Specifications Engagement Force
⤠14 lb
Specifications Insert Material
Thermoset Plastic
Specifications Mating
Axial Push-Pull Motion
Specifications Mating Cycles
5000
Specifications Plating Material
Black Anodize (standard) | Black Chrome (shielded)
Specifications Rear Accessory
Overmold
Specifications Shell Material
Aluminum
Specifications Temperature
-55 to 85 ºC
