Amphenol NEXUS Technologies →

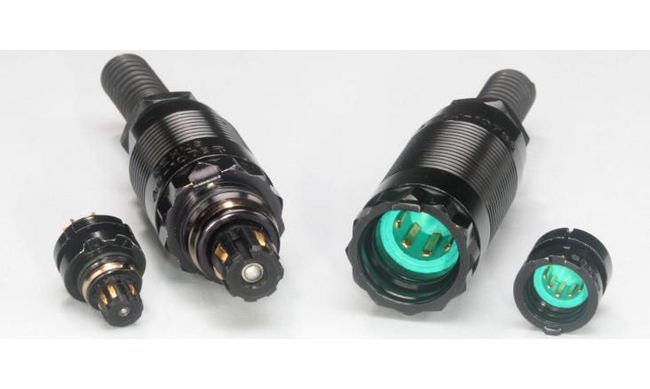

Miniature Waterproof Plug with Wire Strain Relief & Solder Terminals - 7-Conductor

Miniature Waterproof Plug with Wire Strain Relief & Solder Terminals - 7-Conductor

SKU:7AN-a50eb1

Durable 7-Conductor Miniature Waterproof Plug with Wire Strain Relief for Commercial/Military Apps

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

Miniature Waterproof Plug with Wire Strain Relief & Solder Terminals - 7-Conductor

Miniature Waterproof Plug with Wire Strain Relief & Solder Terminals - 7-Conductor

$24.99

Quantity: 1

Claim Your Seller Account

Miniature Waterproof Plug with Wire Strain Relief & Solder Terminals - 7-Conductor

Miniature Waterproof Plug with Wire Strain Relief & Solder Terminals - 7-Conductor

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

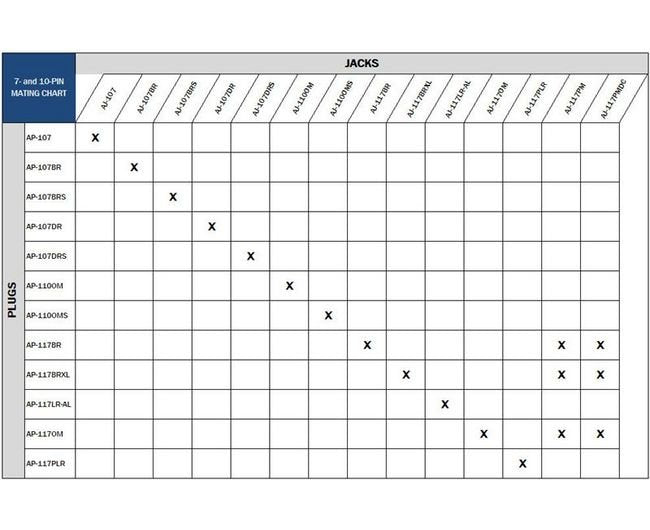

The Miniature Waterproof Plug with Wire Strain Relief & Solder Terminals is a durable solution designed for ruggedized commercial and military applications. With seven conductors, gold-plated BeCu contacts, and a thermoset plastic insert, this plug ensures reliable signal transmission in harsh environments. It features a rear wire strain relief accessory for cables up to .250" in diameter and mating with AJ-117BRXL, AJ-117BR, and AJ-117OM connectors. Built to withstand temperatures from -55 to 85 °C and capable of 5000 mating cycles, this plug offers low contact resistance and an engagement force of ≤ 14 lb, meeting the demanding requirements of industrial settings.

Product Specifications

Specifications Application
Ruggedized Commercial / Military
Specifications Conductors
7
Specifications Contact Current Capacity
3 A
Specifications Contact Material
Gold-plated BeCu
Specifications Contact Resistance
≤ 150 mV
Specifications Contact Types
Solder
Specifications Disengagement Force
8 to 12 lb
Specifications Engagement Force
≤ 14 lb
Specifications Insert Material
Thermoset Plastic
Specifications Mating
Axial Push-Pull Motion
Specifications Mating Cycles
5000
Specifications Plating Material
Black Anodize (standard) | Black Chrome (shielded)
Specifications Rear Accessory
Wire Strain Relief (.250 max)
Specifications Shell Material
Aluminum
Specifications Temperature
-55 to 85 ºC
