Miniature Wire Saddle for .062 Chassis - Pack of 1000
Miniature Wire Saddle for .062 Chassis - Pack of 1000
SKU:03W-9bdcad
Precision wire routing solution for .062 chassis. Pack of 1000, durable Nylon 66 material, RoHS compliant, -40 to 185°F temp range.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Miniature Wire Saddle for .062 Chassis - Pack of 1000
$29.99
Quantity: 1
Claim Your Seller Account
Miniature Wire Saddle for .062 Chassis - Pack of 1000
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 60 Series Miniature Wire Saddle is designed for precise wire routing in applications with .062 chassis thickness. Made from Nylon 66 UL94V-2 material (V-0 available), these wire saddles feature a .118 mounting hole for secure installation. RoHS compliant and with a temperature range of -40 to 185°F (-40 to 85°C), these wire saddles offer durability and reliability. Each pack contains 1000 wire saddles, ideal for industrial and institutional wire routing projects.
Product Specifications

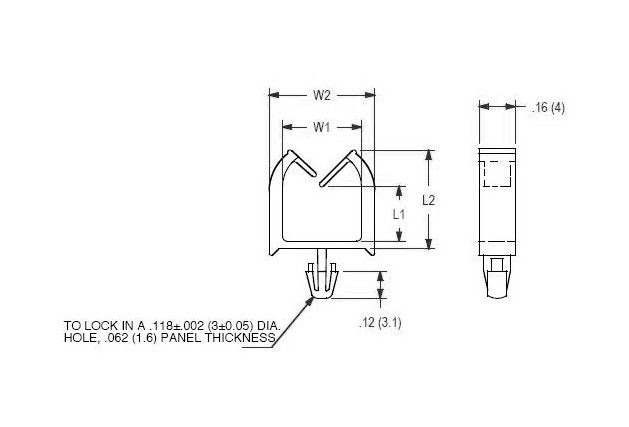

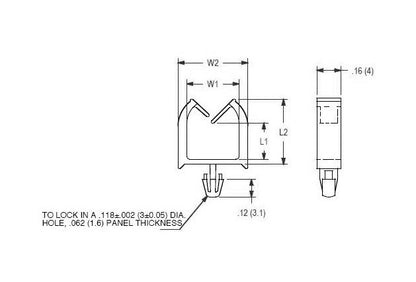

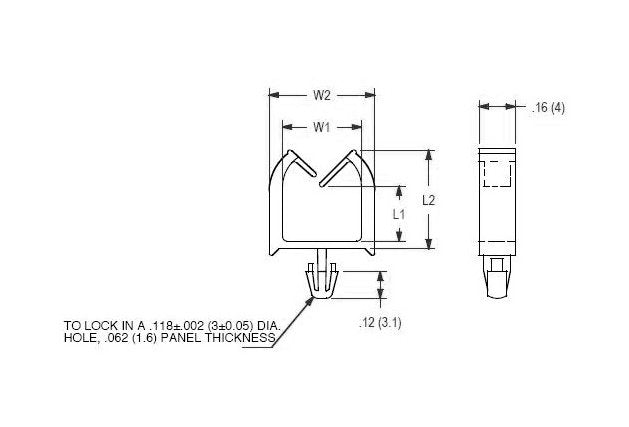

Specifications Dim L1
.16 (3.4) inches (mm)
Specifications Dim L2
.36 (9.1) inches (mm)
Specifications Dim W1
.32 (8.1) inches (mm)
Specifications Dim W2
.42 (10.8) inches (mm)
