Miniature Wire Saddle for .093 Chassis Thickness

Name: Miniature Wire Saddle for .093 Chassis Thickness
Brand: All Electronics Hardware
SKU: 03W-b610eb
Price: 29.99 USD
Availability: OutOfStock

SKU:03W-b610eb

Secure wire routing with our Miniature Wire Saddle for .093 chassis, RoHS compliant & durable, -40 to 185°F temp range.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 22 (22-1) Series Miniature Wire Saddle is designed for .093 chassis thickness, offering secure wire routing solutions. Made of Nylon 66 material with UL94V-2 certification (V-0 option available), each saddle ensures reliability and safety. These wire saddles are RoHS compliant and withstand temperatures from -40 to 185°F. With dimensions of .240 (L1) x .360 (L2) inches and a mounting hole diameter of .138 inches, they provide efficient wire organization for various applications.

Product Specifications

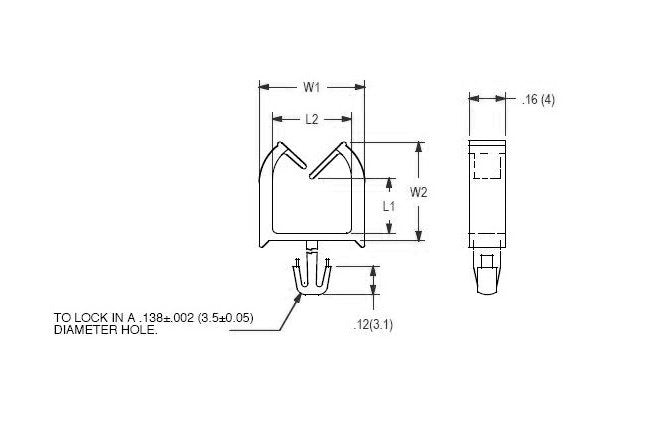

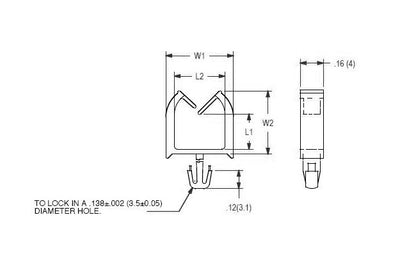

Specifications Dim L1

.240 (6.0) inches (mm)

Specifications Dim L2

.360 (9.1) inches (mm)

Specifications Dim W1

.470 (12.0) inches (mm)

Specifications Dim W2

.440 (11.2) inches (mm)

Specifications Mounting Hole Diameter

.138 (3.5) inches (mm)

Specifications Panel Thickness

.093 (2.4) inches (mm)
