Miniature Wire Saddle for .093 Chassis Thickness, Mounting Hole .138

Name: Miniature Wire Saddle for .093 Chassis Thickness, Mounting Hole .138
Brand: All Electronics Hardware
SKU: 03W-e64ea0
Price: 39.99 USD
Availability: OutOfStock

SKU:03W-e64ea0

High-quality Miniature Wire Saddle for .093 chassis thickness. Pack of 1000, ASTM D 4066, RoHS compliant.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 22 (22-1) Series Miniature Wire Saddle x .138 Mtg. Hole is a high-quality wire routing device designed for .093 chassis thickness applications. Made of Nylon 66 material with UL94V-2 flame resistance (V-0 option available), this pack of 1000 wire saddles ensures secure wire management. With ASTM D 4066 and PA111 compliance, these natural-colored saddles are RoHS compliant and offer a temperature range of -40 to 185 F. Featuring precise dimensions and a sturdy construction, they provide optimal wire organization for various projects in both consumer and institutional settings.

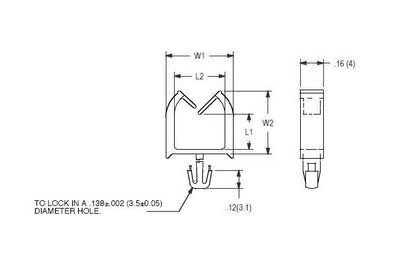

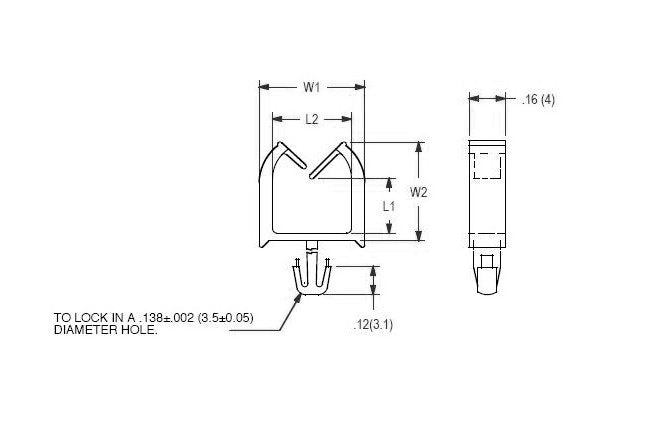

Product Specifications

Specifications Dim L1

.300 (7.6) inches (mm)

Specifications Dim L2

.360 (9.1) inches (mm)

Specifications Dim W1

.470 (11.9) inches (mm)

Specifications Dim W2

.510 (13.0) inches (mm)

Specifications Mounting Hole Diameter

.138 (3.5) inches (mm)

Specifications Panel Thickness

.093 (2.4) inches (mm)
