Miniature Wire Saddle Mounting Kit, .138" Hole, 22-1 Series

Name: Miniature Wire Saddle Mounting Kit, .138" Hole, 22-1 Series
Brand: All Electronics Hardware
SKU: 03W-2a74bb
Price: 14.99 USD
Availability: OutOfStock

SKU:03W-2a74bb

Securely manage wires with our Miniature Wire Saddle Mounting Kit (.138" Hole, 22-1 Series) for .093" chassis thickness. RoHS compliant, durable Nylon 66 material, and UL94V-2 certified.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

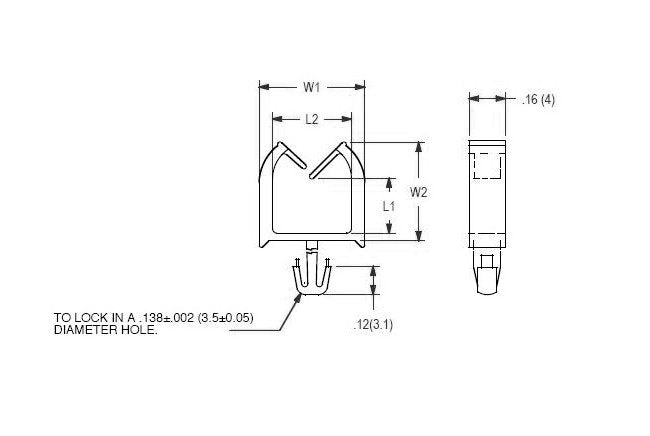

The Miniature Wire Saddle Mounting Kit from the 22-1 Series offers a reliable solution for wire management in various applications. Made of durable Nylon 66 material, this kit ensures secure wire routing while accommodating .093 chassis thickness. With UL94V-2 certification (V-0 available), RoHS compliance, and a temperature range of -40 to 185°F, it meets stringent industry standards. Suitable for panel thickness ranging from .024 to .063 inches, it features precise dimensions (L1: .300", L2: .360", W1: .470", W2: .510") and a .138" mounting hole diameter for easy installation.

Product Specifications

Specifications Dim L1

.300 (7.6) inches (mm)

Specifications Dim L2

.360 (9.1) inches (mm)

Specifications Dim W1

.470 (11.9) inches (mm)

Specifications Dim W2

.510 (13.0) inches (mm)

Specifications Mounting Hole Diameter

.138 (3.5) inches (mm)

Specifications Panel Thickness

.024 - .063 (.6 - 1.6) inches (mm)

Miniature Wire Saddle Mounting Kit, .138" Hole, 22-1 Series
