Miniature Wire Saddle Tear Drop with .067 Mounting Hole

Name: Miniature Wire Saddle Tear Drop with .067 Mounting Hole
Brand: All Electronics Hardware
SKU: 03W-0d0476
Price: 24.99 USD
Availability: OutOfStock

SKU:03W-0d0476

Efficient wire routing with 83 (83-1) Series Miniature Wire Saddle Tear Drop. Durable Nylon 66 material, RoHS compliant, for .063/.093 chassis thicknesses.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 83 (83-1) Series Miniature Wire Saddle Tear Drop x .067 Mounting Hole is expertly designed for efficient wire routing in industrial applications. Available for both .063 and .093 chassis thicknesses, these wire saddles come in a pack of 1000, offering durability and high performance. Crafted from Nylon 66 UL94V-2 material, these wire saddles ensure compliance with ASTM D4066, PA111, and are RoHS compliant. With a temperature range of -40 to 185 F (-40 to 85 C), these wire saddles are ideal for demanding environments.

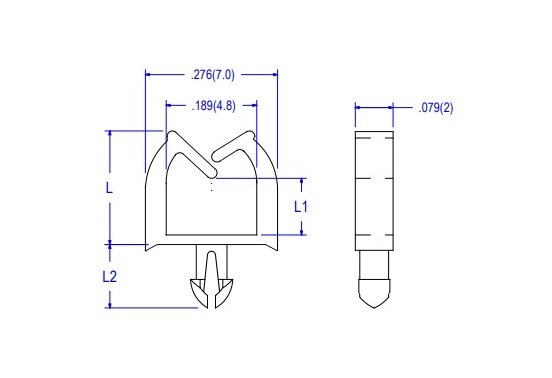

Product Specifications

Specifications L

.236 (6) inches (mm)

Specifications L1

.118 (3) inches (mm)

Specifications L2

.161 (4.1) inches (mm)

Specifications Mounting Hole Diameter

.067 (1.7) inches (mm)

Specifications Panel Thickness

.093 (2.4) inches (mm)
