Miniature Wire Saddle with .138 Mounting Hole - 22 (22-1) Series

Name: Miniature Wire Saddle with .138 Mounting Hole - 22 (22-1) Series
Brand: All Electronics Hardware
SKU: 03W-5ceb71
Price: 29.99 USD
Availability: OutOfStock

SKU:03W-5ceb71

22 (22-1) Series Miniature Wire Saddle for .093 chassis thickness. Durable nylon material, RoHS compliant. Temp range -40 to 185 F.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 22 (22-1) Series Miniature Wire Saddle is designed for efficient wire routing in environments with .093 chassis thickness. Constructed from durable Nylon 66 material, UL94V-2 rated (V-0 available), and RoHS compliant, these wire saddles offer a secure and reliable solution for organizing wires. With a temperature range of -40 to 185 F (-40 to 85 C), these wire saddles provide consistent performance in varying conditions. The product packaging includes 1000 units per bag, ensuring convenient installation and usage.

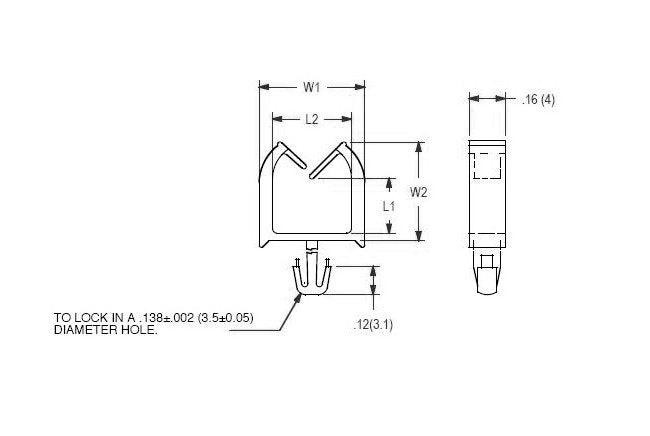

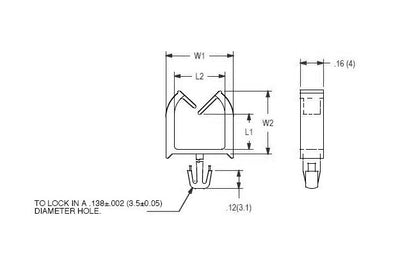

Product Specifications

Specifications Dim L1

.160 (4.1) inches (mm)

Specifications Dim L2

.320 (8.1) inches (mm)

Specifications Dim W1

.420 (10.7) inches (mm)

Specifications Dim W2

.360 (9.1) inches (mm)

Specifications Mounting Hole Diameter

.138 (3.5) inches (mm)

Specifications Panel Thickness

.093 (2.4) inches (mm)
