Miniature Wire Saddle with .138" Mounting Hole - 22 (22-1) Series

Name: Miniature Wire Saddle with .138" Mounting Hole - 22 (22-1) Series
Brand: All Electronics Hardware
SKU: 03W-40f659
Price: 12.99 USD
Availability: OutOfStock

SKU:03W-40f659

Durable Miniature Wire Saddle for precise wire routing and organization, RoHS compliant with a wide temperature range.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 22 (22-1) Series Miniature Wire Saddle x .138 Mounting Hole is a durable wire routing solution designed for various chassis thicknesses. Made of Nylon 66 material with UL94V-2 fire rating (V-0 available), these wire saddles are RoHS compliant and suitable for a wide temperature range. With precise dimensions and a secure mounting hole diameter of .138 inches, these wire saddles ensure efficient wire organization and safety. Ideal for applications requiring reliable wire management.

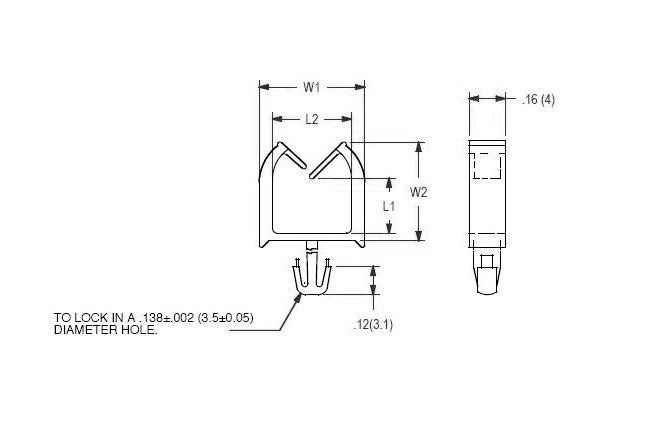

Product Specifications

Specifications Dim L1

.120 (3.0) inches (mm)

Specifications Dim L2

.260 (6.6) inches (mm)

Specifications Dim W1

.360 (9.1) inches (mm)

Specifications Dim W2

.290 (7.3) inches (mm)

Specifications Mounting Hole Diameter

.138 (3.5) inches (mm)

Specifications Panel Thickness

.024 - .063 (.6 - 1.6) inches (mm)

Miniature Wire Saddle with .138" Mounting Hole - 22 (22-1) Series
