Miniature Wire Saddle x .138 Mtg. Hole, 22-1 Series

Name: Miniature Wire Saddle x .138 Mtg. Hole, 22-1 Series
Brand: All Electronics Hardware
SKU: 03W-b53756
Price: 34.99 USD
Availability: OutOfStock

SKU:03W-b53756

Premium Miniature Wire Saddle for precise wire routing, Nylon 66 material, RoHS compliant, pack of 1000.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Miniature Wire Saddle x .138 Mounting Hole, part of the 22 (22-1) Series, is meticulously designed for wire routing needs. Constructed with Nylon 66 material meeting UL94V-2 standards (V-0 available), it offers unparalleled durability and safety. This wire routing device is RoHS compliant, ensuring environmental responsibility. With a temperature range of -40 to 185 degrees F (-40 to 85 degrees C), it's suitable for diverse applications. Perfect for .093 chassis thickness, this product comes in a pack of 1000 for bulk requirements.

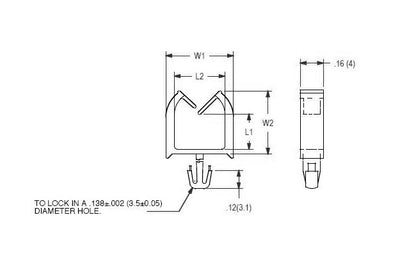

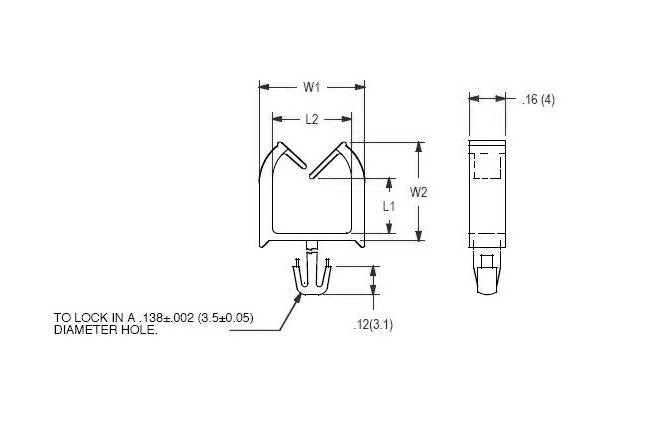

Product Specifications

Specifications Dim L1

.120 (3.0) inches (mm)

Specifications Dim L2

.260 (6.6) inches (mm)

Specifications Dim W1

.360 (9.1) inches (mm)

Specifications Dim W2

.290 (7.3) inches (mm)

Specifications Mounting Hole Diameter

.138 (3.5) inches (mm)

Specifications Panel Thickness

.093 (2.4) inches (mm)
