Miniflex 40m Pipe Inspection Camera System
Miniflex 40m Pipe Inspection Camera System
SKU:PIP-4609bc
Explore with precision! Miniflex 40m Plumbing Camera: Extreme portability, outstanding maneuverability, and superior image quality for hassle-free pipeline inspections.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Miniflex 40m Pipe Inspection Camera System
$2,999.99
Quantity: 1
Claim Your Seller Account
Miniflex 40m Pipe Inspection Camera System
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Miniflex 40m Pipe Inspection Camera System by Fiberscope.net stands out as a cutting-edge solution for small-diameter pipeline inspections. Featuring extreme maneuverability and a patented flexi-tube design, this portable system is equipped with a 512Hz Sonde and 12 LED lights for enhanced visibility. With a waterproof rating of 3 bars and a CMOS chip integrated camera head, it navigates bends effortlessly and ensures reliable performance. Ideal for various applications such as pool inspections, kitchen and bathroom surveys, and plumbing examinations, this system offers practicality, durability, and advanced functionality.
Product Specifications
Additional Information

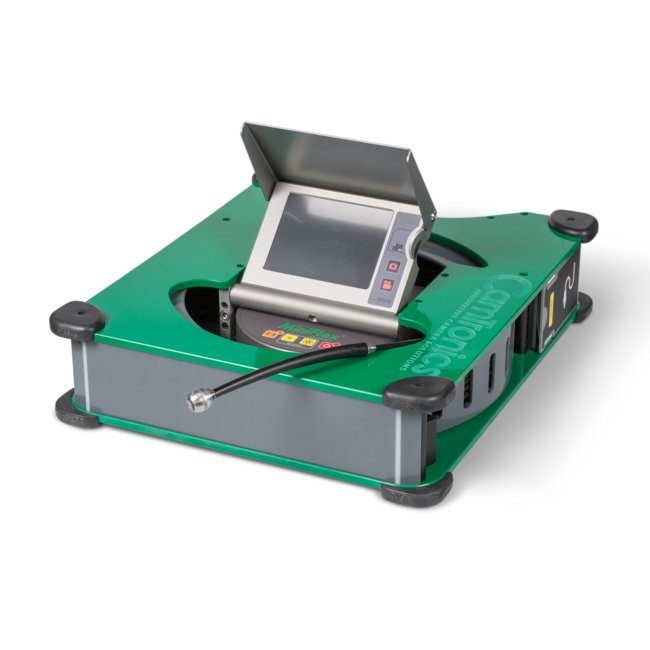

The MINIFLEX Plumbing Camera is a highly advanced camera unit in portability and maneuverability. All-in-one inspection system, this innovative Miniflex is the perfect solution for all small-diameter inspection needs. The extreme flexibility is made possible by a unique patented flexi-tube neck behind the camera head, which makes it capable of navigating multiple 90 degrees bends in 38 mm (1 1/2") pipes and P-traps in 32 mm (1 1/4") PVC pipes. With a color CMOS chip integrated into the head, the camera head is 19.5mm (0.76") in diameter. Twelve high-powered LED lights provide excellent illumination for inspecting pipes up to 4 inches (100 mm) in diameter. The camera head is machined from high-grade stainless steel and has a waterproof rating of 3 bars (100 ft.). Scratch-proof sapphire glass lens protects the camera chip, and a 512Hz sonde is built-in for easy location. The waterproof flexible combi push cable is 5.5 mm (0.22") in diameter and comes in 40-meter (131 ft.) length. The live image is displayed on a color 5.6" LCD monitor housed inside a metal case with a sun shield for inspections in daylight. The monitor features a text generator, image and video capture, an on-screen electronic counter, a rechargeable battery with seven hours of use, and a skid for centering the camera in pipes. The MINIFLEX Plumbing Camera is a perfect solution for difficult inspection applications that demand portability and maneuverability.
Applications
Pool and Spa Inspections Sprinkler Systems ExaminationsKitchen and Bathroom InspectionsDrainage SurveysPlumbing and Sewer ApplicationsConstruction Surveys
Features
All-in-one Portable SystemExtreme ManeuverabilityPatented Flexi-tube Neck Capable of P-trap in 1¼" pipeBuilt-in 512Hz SondePortable Operation up to 7 hoursWater resistance: 3 bar
Technical Specs Battery Operated
Yes
Technical Specs Brands
Fiberscope.net by MEDIT
Technical Specs Camera Types
Straight View
Technical Specs Footage Counter
Yes
Technical Specs Head Diameter
0.76 in | 19.5 mm
Technical Specs Imagevideo Capture
Yes
Technical Specs Interchangeable Heads
No
Technical Specs Length
131 ft | 40 m
Technical Specs Monitor Size
5.6 in
Technical Specs Monitor Type
Thin Film Transistor Liquid Crystal Display (TFT LCD)
Technical Specs Note
Available for Rent
Technical Specs Sonde Frequency
Yes
Technical Specs Text Generator
Yes
Technical Specs Waterproof
3 Bar
