MinVee TDO Double Edge Track
MinVee TDO Double Edge Track
SKU:SSP-171e29
Precision-engineered MinVee TDO Double Edge Track for high-speed, heavy-duty linear motion applications. Built on Dual Vee Motion Technology®.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
MinVee TDO Double Edge Track
$299.99
Quantity: 1
Claim Your Seller Account
MinVee TDO Double Edge Track
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The MinVee TDO Double Edge Track from the MinVee Linear Slide System is a high-performance solution designed for precision motion applications in both consumer and institutional settings. With a wheel load capacity of up to 121 lbs and speeds reaching 5 meters per second, this track is built on Dual Vee Motion Technology® for exceptional reliability. The track features a self-aligning mounting shoulder that ensures accurate positioning of Vee ways, along with a double edge design that guarantees parallel Vee ways for seamless operation. Made of top-grade AISI 1045 carbon steel, the track is available in hardened polished or unhardened form and offers custom coating/plating options such as black oxide and electroless nickel. Easy to install with pre-drilled holes, the MinVee TDO Double Edge Track meets stringent manufacturing tolerances and specifications, making it a top choice for demanding applications.

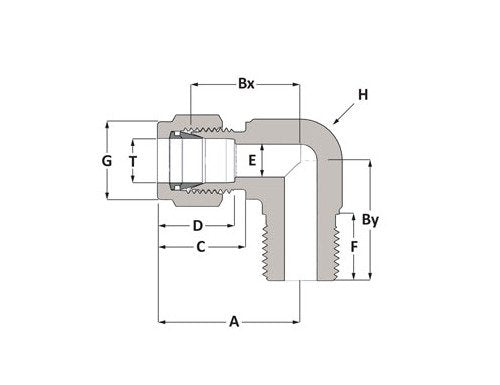

Product Specifications
Dimensions A
25.4 mm
Dimensions Bx
18.8 mm
Dimensions By
23.3 mm
Dimensions C
16.1 mm
Dimensions D
13.7 mm
Dimensions E
2.4 mm
Dimensions F
14.4 mm
Dimensions G
1/2 in | 13 mm
Dimensions H
1/2 in | 13 mm
Dimensions P
1/4 in
Dimensions T
4 mm

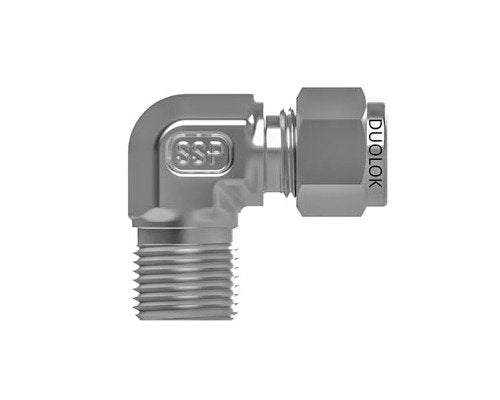

Specifications Body Material
Alloy 400
Specifications Brand Series
Duolok
Specifications Connection 1 Size
4 mm
Specifications Connection 1 Type
Tube Fitting
Specifications Connection 2 Size
1/4 in
Specifications Connection 2 Type
Male BSPT
Specifications End Connections
TF x Male BSPT
Specifications Handle Color
0
Specifications Handle Type
0
Specifications Production Category
4
Specifications Shape
Elbow
Category 6
Duolok® Tube Fittings
