Mitee-Bite 12mm Table T-Slot Clamping Kit
Mitee-Bite 12mm Table T-Slot Clamping Kit
SKU:KIT-d01aa6
Secure and low-profile clamping with the Mitee-Bite 12mm Table T-Slot Clamping Kit. Includes T-nuts, Fixture Clamps, and Hex Keys for precision setups.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Mitee-Bite 12mm Table T-Slot Clamping Kit
$89.99
Quantity: 1
Claim Your Seller Account
Mitee-Bite 12mm Table T-Slot Clamping Kit
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

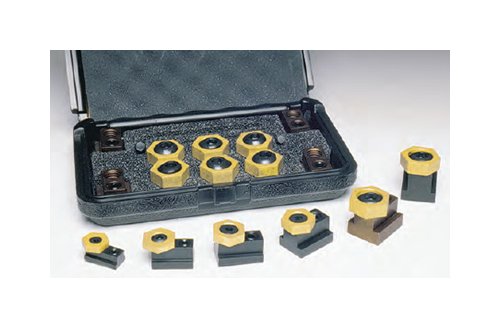

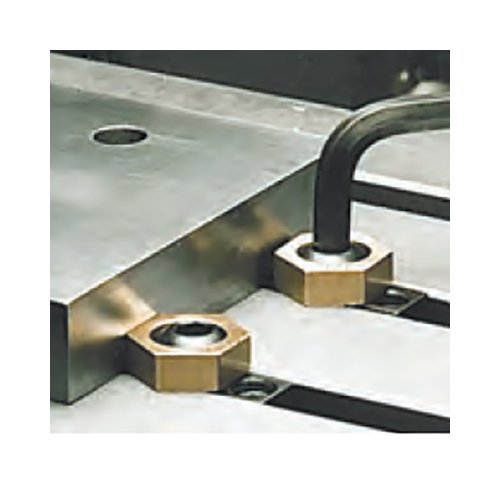

The Mitee-Bite 12mm Table T-Slot Clamping Kit features a unique cam action clamping element combined with a T-nut for secure and low-profile clamping. With a maximum torque of 11.30 N·m and a holding force of 3,355 N, this kit ensures stability and precision. The kit includes 4 Mitee-Bite T-Nuts, 6 Fixture Clamps, and 2 Hex Keys, making it ideal for fast setups right on the machine table. Its brass hex follows contours for unusual shaped parts, enhancing versatility and efficiency for machining applications.
Ready to Grow Without Cash Flow Constraints?

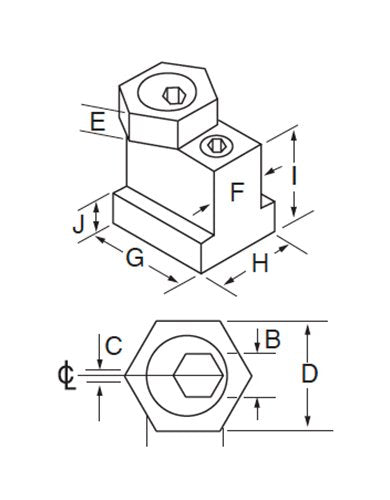

Product Specifications
Dimensions Dimension B
5 mm
Dimensions Dimension C
1.01 mm
Dimensions Dimension D
20.62 mm
Dimensions Dimension E
4.75 mm
Dimensions Dimension F
12 mm
Dimensions Dimension G
27.9 mm
Dimensions Dimension H
15.9 mm
Dimensions Dimension I
15.9 mm
Dimensions Dimension J
6.4 mm
Kit Includes Kit Includes
4 Mitee-Bite T-Nuts6 Mitee-Bite Fixture Clamps2 Hex Keys
Technical Specs Brands
Mitee-Bite®
Technical Specs Holding Force
3,355 N
Technical Specs Maximum Torque
11.30 N·m
Technical Specs Table T Slot
12 mm
