Mitee-Bite 22mm Table T-Slot Clamping Kit
Mitee-Bite 22mm Table T-Slot Clamping Kit
SKU:KIT-abe640
Securely clamp workpieces with the Mitee-Bite 22mm T-Slot Kit. Easy setups, strong holding force, and versatile design for machining tasks.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Mitee-Bite 22mm Table T-Slot Clamping Kit
$149.99
Quantity: 1
Claim Your Seller Account
Mitee-Bite 22mm Table T-Slot Clamping Kit
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

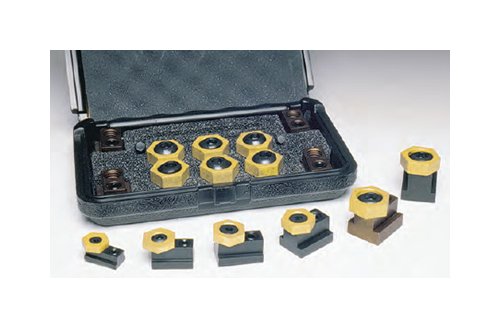

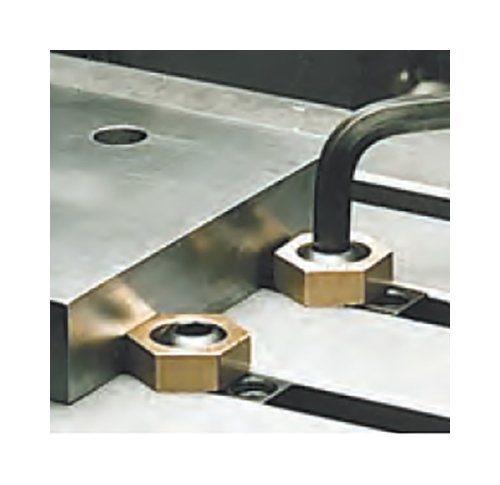

The Mitee-Bite 22mm Table T-Slot Clamping Kit offers innovative cam action clamping with T-nut integration. With a 22mm Table T-Slot and a maximum torque of 135.00 N·m, it provides a holding force of 26,680 N for secure fastening. This kit includes 4 Mitee-Bite T-Nuts, 6 Mitee-Bite Fixture Clamps, and 2 Hex Keys, enabling easy setups right on the machine table. The brass hex design adapts to various part shapes, making it ideal for precision machining tasks.

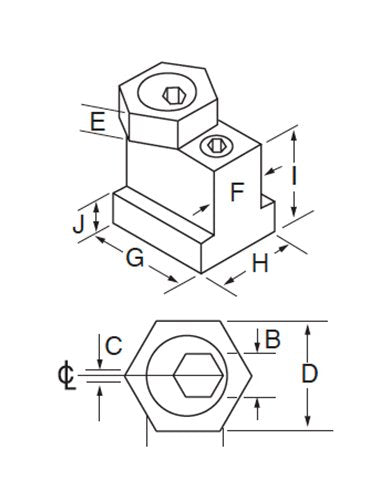

Product Specifications
Dimensions Dimension B
12 mm
Dimensions Dimension C
2.54 mm
Dimensions Dimension D
30.15 mm
Dimensions Dimension E
12.70 mm
Dimensions Dimension F
22 mm
Dimensions Dimension G
44.3 mm
Dimensions Dimension H
34.9 mm
Dimensions Dimension I
41.3 mm
Dimensions Dimension J
12.5 mm
Kit Includes Kit Includes
4 Mitee-Bite T-Nuts6 Mitee-Bite Fixture Clamps2 Hex Keys
Technical Specs Brands
Mitee-Bite®
Technical Specs Holding Force
26,680 N
Technical Specs Maximum Torque
135.00 N·m
Technical Specs Table T Slot
22 mm
