Mitee-Bite 5/8" Table T-Slot Clamping Kit
Mitee-Bite 5/8" Table T-Slot Clamping Kit
SKU:KIT-c76e4b
Secure, efficient clamping with Mitee-Bite® 5/8" Table T-Slot Clamping Kit. Ideal for low profile setups on machine tables.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Mitee-Bite 5/8" Table T-Slot Clamping Kit
$89.99
Quantity: 1
Claim Your Seller Account
Mitee-Bite 5/8" Table T-Slot Clamping Kit
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

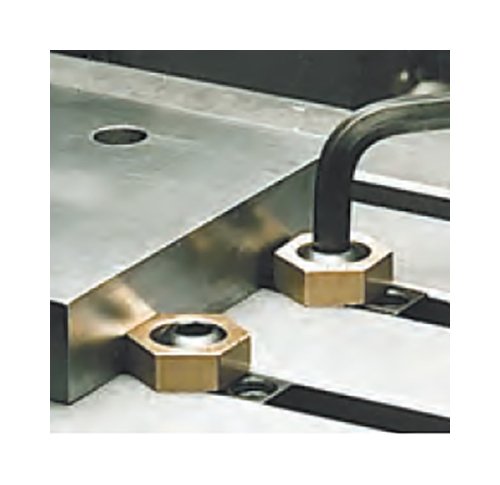

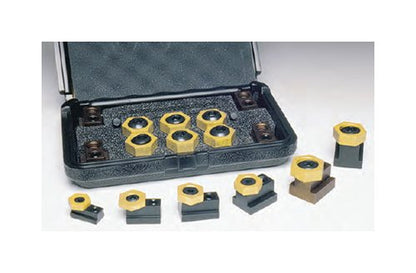

The Mitee-Bite® 5/8 Inch Table T-Slot Clamping Kit offers superior clamping efficiency with its unique cam action clamping element and T-nut design. This kit ensures secure locking in machine T-slots, enabling low profile clamping and swift setups directly on the machine table. With a maximum torque of 45.0 ft/lb and a holding force of 3,000 lb, it is ideal for securing a variety of workpieces. The kit includes 4 Mitee-Bite T-Nuts, 6 Fixture Clamps, and 2 Hex Keys, providing a comprehensive clamping solution for industrial applications.
Product Specifications
Dimensions Dimension B
5/16 in
Dimensions Dimension C
0.100 in
Dimensions Dimension D
1.000 in
Dimensions Dimension E
0.375 in
Dimensions Dimension F
0.620 in
Dimensions Dimension G
1.27 in
Dimensions Dimension H
1.000 in
Dimensions Dimension I
0.815 in
Dimensions Dimension J
0.425 in
Kit Includes Kit Includes
4 Mitee-Bite T-Nuts6 Mitee-Bite Fixture Clamps2 Hex Keys
Technical Specs Brands
Mitee-Bite®
Technical Specs Cam Screw Size
1/2-13
Technical Specs Holding Force
3,000 lb
Technical Specs Maximum Torque
45.0 ft/lb
Technical Specs Table T Slot
5/8 in
