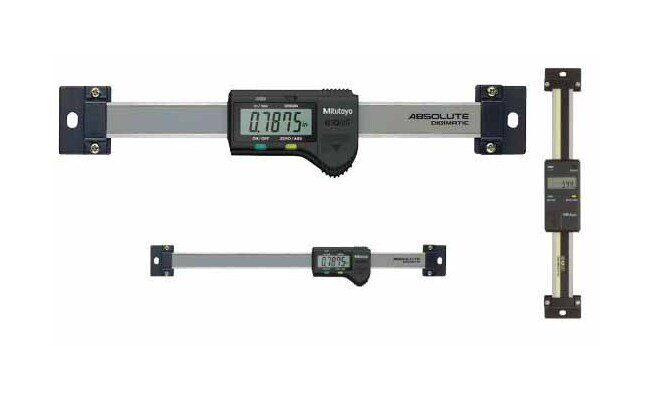

Mitutoyo 572 Absolute Digimatic Scale Unit

Name: Mitutoyo 572 Absolute Digimatic Scale Unit
Brand: Penn Tool Co.
SKU: BEN-a592c8
Price: 489.99 USD
Availability: OutOfStock

SKU:BEN-a592c8

Enhance measurement precision with the Mitutoyo 572 Absolute Digimatic Scale Unit. Ideal for industrial applications, this advanced scale unit offers superior accuracy and durability.

$489.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Mitutoyo 572 Absolute Digimatic Scale Unit features advanced functionality for precise measurements in both horizontal and vertical orientations. Equipped with the ORIGIN key for setting absolute zero points and the ZERO/ABS key for incremental comparison measurements, this scale unit offers unparalleled accuracy and convenience. The hardened stainless steel blade ensures durability, while the large LCD display enhances visibility. With a battery life of approximately 3.5 years and a resolution of 0.0005 inches, this unit is ideal for a wide range of industrial applications, including lathes. Upgrade to Mitutoyo for unparalleled precision and performance.

Product Specifications

Technical Specs Accuracy

0.001 in

Technical Specs Battery

SR44 (1 pc.), 938882

Technical Specs Battery Life

Approximate 3.5 years under normal use

Technical Specs Brands

Mitutoyo

Technical Specs Display

Large Liquid-Crystal Display (LCD)

Technical Specs Function

Origin-set, Zero-setting, Power on/off, Presetting, Data hold, Data output, inch/mm conversion (oninch/metric models only), Counting direction switching (not available for single function models)Alarm: Low voltage, Counting value composit

Technical Specs Length Standard

ABSOLUTE electrostatic capacitance type linear encoder

Technical Specs Maximum Response Speed

Unlimited

Technical Specs Multi Function Equipped With Double Reading Func

572-592-10

Technical Specs Multi Function Type

572-474 | 572-475 | 572-476 | 572-477 | 572-574 | 572-575 | 572-576 | 572-577

Technical Specs Range

0 to 6 in | 0 to 150 mm

Technical Specs Resolution

0.0005 in | 0.01 mm

Technical Specs Type

Vertical

Mitutoyo 572 Absolute Digimatic Scale Unit
