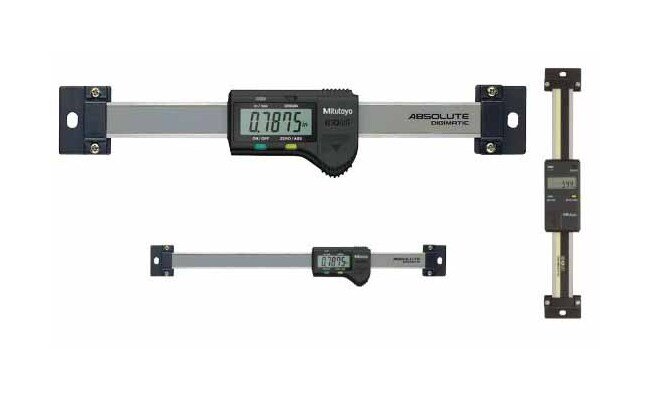

Mitutoyo 572 Absolute Digimatic Scale Unit
Mitutoyo 572 Absolute Digimatic Scale Unit
SKU:BEN-2bc9c8
Get precise measurements with Mitutoyo's 572 Absolute Digimatic Scale Unit. Ideal for institutional use!
Regular price
$789.99
Regular price
Sale price
$789.99
Unit price
per
Initiate Order
Mitutoyo 572 Absolute Digimatic Scale Unit
$789.99
Quantity: 1
Claim Your Seller Account
Mitutoyo 572 Absolute Digimatic Scale Unit
$789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Mitutoyo 572 Absolute Digimatic Scale Unit sets a new standard in precision measurement. Featuring an ORIGIN key for absolute zero setting and a ZERO/ABS key for incremental comparison measurements, this scale unit ensures accurate and reliable data every time. With a resolution of 0.0005 inches and a range of 0 to 40 inches, this vertical-type unit is equipped with a large LCD display and offers functions like data output and inch/mm conversion. Perfect for lathes and other machining applications, this scale unit is a must-have for any institution requiring top-tier measurement equipment.
Product Specifications
Technical Specs Accuracy
0.0025 in
Technical Specs Battery
SR44 (1 pc.), 938882
Technical Specs Battery Life
Approximate 3.5 years under normal use
Technical Specs Brands
Mitutoyo
Technical Specs Display
Large Liquid-Crystal Display (LCD)
Technical Specs Function
Origin-set, Zero-setting, Power on/off, Presetting, Data hold, Data output, inch/mm conversion (oninch/metric models only), Counting direction switching (not available for single function models)Alarm: Low voltage, Counting value composit
Technical Specs Length Standard
ABSOLUTE electrostatic capacitance type linear encoder
Technical Specs Maximum Response Speed
Unlimited
Technical Specs Multi Function Equipped With Double Reading Func
572-592-10
Technical Specs Multi Function Type
572-474 | 572-475 | 572-476 | 572-477 | 572-574 | 572-575 | 572-576 | 572-577
Technical Specs Range
0 to 40 in | 0 to 1000 mm
Technical Specs Resolution
0.0005 in | 0.01 mm
Technical Specs Type
Vertical
