Mitutoyo Absolute Digimatic Scale Unit 572

Name: Mitutoyo Absolute Digimatic Scale Unit 572
Brand: Penn Tool Co.
SKU: BEN-6decb8
Price: 579.99 USD
Availability: OutOfStock

SKU:BEN-6decb8

High-precision Mitutoyo Absolute Digimatic Scale Unit for accurate measurements. Durable, versatile, and easy to use.

$579.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

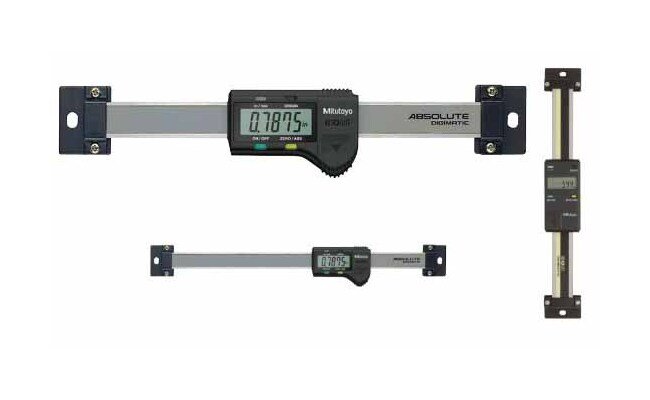

The Mitutoyo Series 572 Absolute Digimatic Scale Unit is a precision instrument designed for accurate measurements in both horizontal and vertical orientations. It features an innovative ORIGIN key for setting an absolute zero point and a ZERO/ABS key for incremental comparison measurements. The scale unit, embedded in a hardened stainless steel blade, ensures durability and reliability. With a resolution of 0.0005 inches or 0.01 millimeters and an accuracy of 0.002 inches, this unit offers exceptional performance. Ideal for lathes, it comes with a diameter displaying function for added versatility. The large LCD display, extended battery life, and multiple functions make it a valuable tool for various applications.

Product Specifications

Technical Specs Accuracy

0.002 in

Technical Specs Battery

SR44 (1 pc.), 938882

Technical Specs Battery Life

Approximate 3.5 years under normal use

Technical Specs Brands

Mitutoyo

Technical Specs Display

Large Liquid-Crystal Display (LCD)

Technical Specs Function

Origin-set, Zero-setting, Power on/off, Presetting, Data hold, Data output, inch/mm conversion (oninch/metric models only), Counting direction switching (not available for single function models)Alarm: Low voltage, Counting value composit

Technical Specs Length Standard

ABSOLUTE electrostatic capacitance type linear encoder

Technical Specs Maximum Response Speed

Unlimited

Technical Specs Multi Function Equipped With Double Reading Func

572-592-10

Technical Specs Multi Function Type

572-474 | 572-475 | 572-476 | 572-477 | 572-574 | 572-575 | 572-576 | 572-577

Technical Specs Range

0 to 24 in | 0 to 600 mm

Technical Specs Resolution

0.0005 in | 0.01 mm

Technical Specs Type

Horizontal
